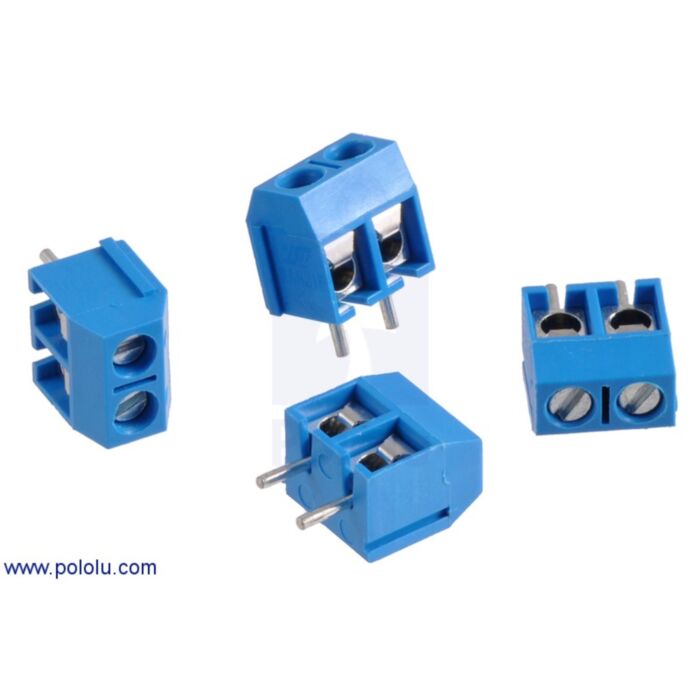

Screw Terminal Block: 2-Pin, 5 mm Pitch, Side Entry (4-Pack)

Rating:

100% of 100

SKU: POLOLU-2440 Brand: Pololu

These side-entry screw terminal blocks have a pitch of 5 mm (0.197″). Each block has two terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four.

$2.50 AUD, inc GST

$2.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $2.18 (exc GST)
25+ $2.12 (exc GST)

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

The following short video gives a quick overview of how to install these terminal blocks onto Pololu's boards:

Details for item #2440

This product is a four-pack of 5mm-pitch, two-pin, side-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.

Screw terminal block: 5 mm pitch, side entry.

Voltage rating (UL/IEC): 250/250 V
Current rating (UL/IEC): 16/24 A
Contact resistance: 20 mO
Wire gauge: 22-14 AWG
Wire strip length: 5 mm

Other terminal block options

Pololu carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:

Side-by-side comparison of Pololu's different terminal blocks with a 0.1" male header strip for size reference. From left to right: 0.1" screwless, 0.1" screw, 3.5 mm screw, and 5 mm screw.

Screwless (spring) terminal, available in side- and top-entry orientations with pitches of 0.1" and 0.2":

Alternatives available with variations in these parameter(s):pins spacing orientationSelect variant…

0.1" screw terminal, which can be used in place of standard 0.1"male and female headers on many PCBs; the only available orientation is side-entry:

Alternatives available with variations in these parameter(s):pinsSelect variant…

People often buy this product together with:

0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black

0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack

0.1" (2.54mm) Crimp Connector Housing: 1x3-Pin 25-Pack

Dimensions

Pins:	2
Spacing:	5 mm

General specifications

Wire gauge:	22-14 AWG
Current rating:	16 A¹
Voltage rating:	250 V¹
Contact resistance:	20 mO
Wire strip length:	5 mm
Terminal type:	screw
Orientation:	side entry

Notes:

1: UL rating.
