Note: The expansion shield is only compatible with FireBeetle 2 ESP32-E IoT Microcontroller (Supports Wi-Fi & Bluetooth).

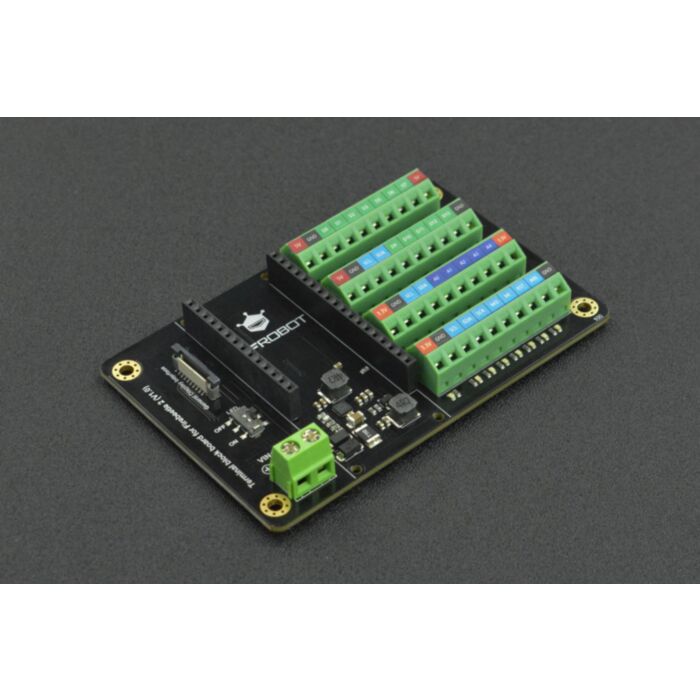

This expansion shield for FireBeetle 2 is just right for makers who love using terminal blocks for wiring up their projects!
Compared with the previous FireBeetle shields, it comes with additional 7-24V external voltage input and GDI port and adopts terminal blocks to secure wires so as to make connections more stable and reliable. Each terminal block (except GND) has an LED for status indication. Since these LEDs also consume power, which leads to higher power consumption, an LED switch is designed on the board to allow users to turn off the LED when not required.
Interface | Function | Remark |
FireBeetle Female Pin Socket | Connect FireBeetle 2 | / |
GDI | Connect screen with GDI port | / |
Onboard LED Switch | Control all terminal block status indicators | / |
VIN Indicator | LED turns on when there is power input on VIN port | Red |
VIN Input Terminal Block | Connect 7-24V external power | / |
Terminal Block | Extend all ports of FireBeetle to terminal blocks with more stable connections | / |
Terminal Block Indicator | Each terminal has an LED for indicating level status | Power: Red, GPIO: Blue |
