Screw Terminal 3.5mm Pitch(2-Pin)

SKU: FIT0181

$1.21 AUD, inc GST
$1.10 AUD, exc GST

More Views

Screw Terminal 3.5mm Pitch(2-Pin)
1.21 AUD

SKU: FIT0181

$1.21 AUD, inc GST
$1.10 AUD, exc GST
In stock, with a short lead time. 358 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 20th of Dec with Express Post within Australia.
Shipping Offer

Introduction

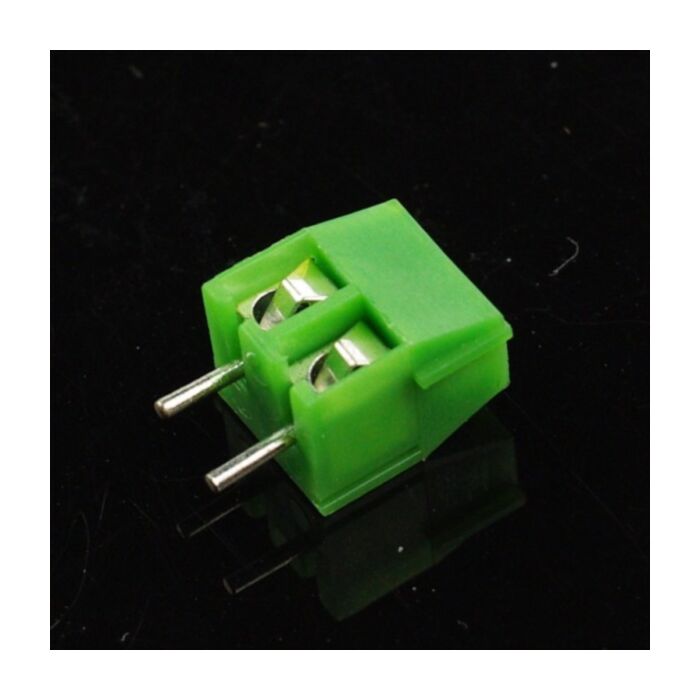

This is a high quality 2-pin screw terminal. Very useful when you want to connect 24-18AWG wires to your circuits.


Specification
  • Rated voltage: 300V
  • Rated current:  10A
  • Contact resistence: 20mΩ
  • Insulation resistence: 5000Ω/1000V
  • Voltage tolernce: AC2000V/1Min
  • Wire diameter:24-18AWG
  • Tempearture range: -30°C+120°C
  • Instant temperature: +250°C 5Min
  • Torque 0.2Nm (1.7lb.in)
  • Strip length: 4.5-5mm

Shipping list
  • Screw Terminals 3.5mm Pitch (2-Pin): 1 unit
