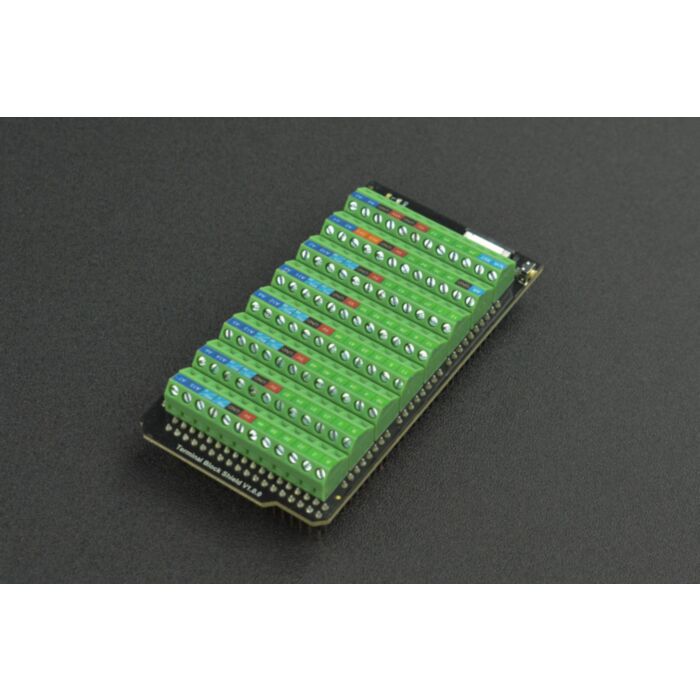

Terminal Block Shield for Arduino Mega

Rating:
100% of 100
SKU: DFR0921
The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V and GND ports are provided for easy...
$61.70 AUD, inc GST
$56.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 6-12 $54.41 (exc GST)
  • 12+ $53.29 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. The onboard 18pin-FPC socket makes it convenient for connecting a screen.

Application

Terminal Block Shield for Arduino Mega Due

Board Overview


GDI 18pin-FPC

FPC PINSMega PINSDescription
VCC5V5V
BLKD7Backlight
GNDGNDGND
SCLKD52SPI clock
MOSID51Host output, slave input
MISOD50Host input, slave output
DCD2Data/command
RESD4Reset
CSD3TFT Chip Select
SDCSD6SD card Chip Select
FCSD25Font library Chip Select
TCSD5Touch Chip Select
SCLSCLI2C clock
SDASDAI2C data
INTD19INT
BUSY-TED24ripstop pins
X1D23custom pin 1
X2D22custom pin 2

Features

  • Stable and reliable connection
  • Easy wiring
  • Applications

  • Commercial Project
  • Art Show
  • Specification

  • VIN Input Voltage: 7-24V DC
  • Max Load Power: 10W
  • Terminal Block Pitch: 3.5mm
  • Cable Size Range: 26AWG-16AWG
  • Wire Strip Length: 5mm
  • Screw: M2
  • Dimension: 101.5 *53.3 mm/4.00*2.10”
  • Documents

    Parts List

  • Terminal Block Shield for Arduino Mega x1
