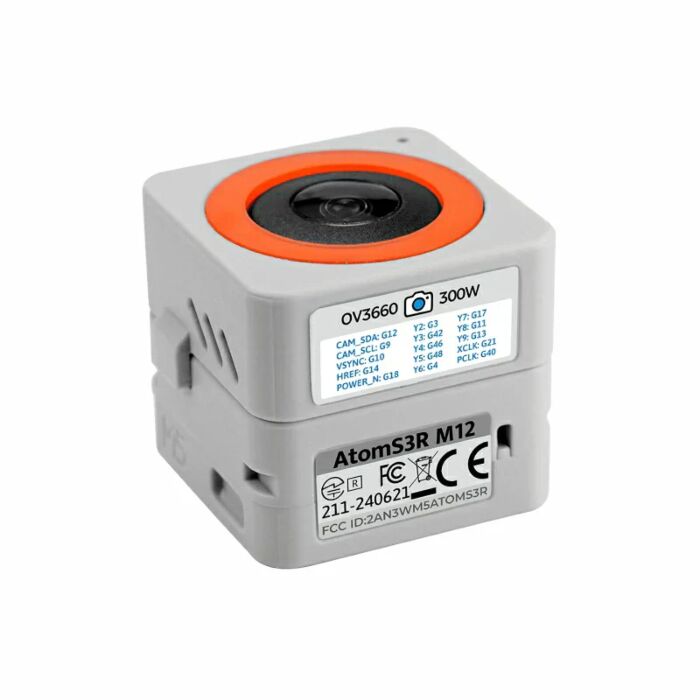

AtomS3R IoT Camera Kit with ESP32-S3

SKU: CE10131 Brand: M5Stack
Explore the AtomS3R IoT camera kit featuring ESP32-S3, 3MP OV3660 sensor, and built-in motion sensors - a compact programmable controller perfect for IoT monitoring, USB webcam applications, and embedded development projects.
$54.18 AUD, inc GST
$49.25 AUD, exc GST

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The AtomS3R IoT Camera Kit revolutionises IoT development by combining powerful imaging capabilities with advanced motion sensing in an incredibly compact form factor. Built around the versatile ESP32-S3-PICO-1-N8R8 controller, this innovative development platform integrates a high-resolution 3MP OV3660 camera with built-in motion sensors, making it perfect for sophisticated monitoring systems, computer vision projects, and interactive applications.

Key Features

  • High-performance ESP32-S3 dual-core processor running at up to 240MHz
  • Professional-grade 3MP OV3660 camera sensor supporting multiple output formats
  • Integrated BMI270 six-axis and BMM150 three-axis geomagnetic sensors
  • Enhanced 3D antenna design for superior WiFi performance
  • 8MB Flash and 8MB PSRAM for robust application development
  • Plug-and-play USB camera functionality with UVC support
  • Compact 24x24x22.1mm form factor

Technical Specifications

  • Camera Specifications:
    • Resolution: 3 Megapixels
    • Frame Rate: Up to 30fps
    • FOV: 120°
    • Focal Length: 1.8±5% mm
  • Motion Sensing:
    • Acceleration accuracy: 0.05%
    • Angular velocity accuracy: 0.05°/s
    • Magnetic accuracy: 0.3 µT
  • Power Requirements:
    • Operating Voltage: 5V via USB Type-C
    • Sleep Current: As low as 10.75 µA (Grove power supply)

How to Use

Getting started with the AtomS3R IoT Camera Kit is straightforward. For programming, connect via the USB Type-C port and enter download mode by holding the reset button for approximately 2 seconds until the internal green LED illuminates. The device supports multiple development platforms including Arduino, UIFlow, and MicroPython, allowing for flexible implementation across various skill levels.

For advanced development needs, consider pairing with the Waveshare ESP32-S3 Mini Development Board for expanded GPIO capabilities and additional debugging options.

What's in the Box

  • 1x AtomS3R IoT Camera Kit with M12 lens mount

Compatibility

  • Development Platforms:
  • Operating Systems: Windows, macOS, Linux
  • Interface: USB Type-C, HY2.0-4P expansion port
