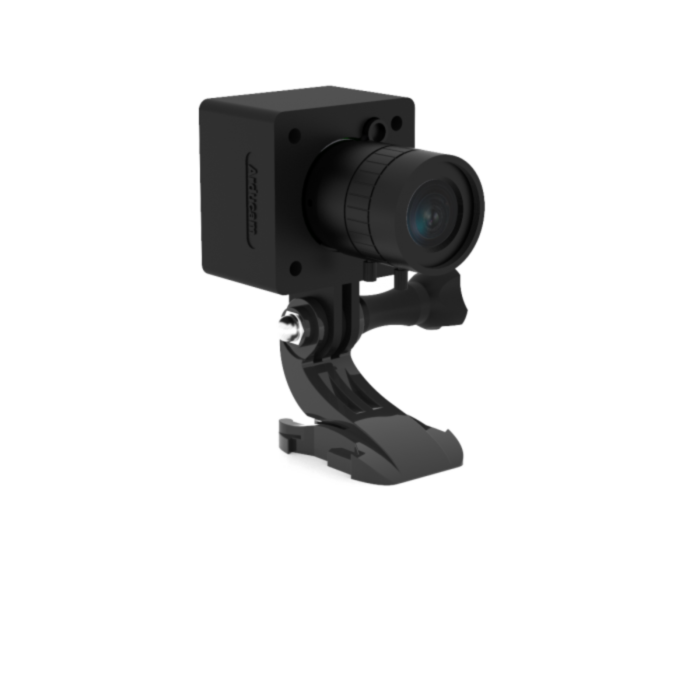

Arducam High Quality IR-CUT Camera for Raspberry Pi (12.3MP)

SKU: AC-B0270 Brand: Arducam
This Arducam module uses the same 12MP IMX477 image sensor as the Raspberry…
$114.95 AUD, inc GST
$104.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 26 and May 27

Quantity Discounts:

  • 5+ $100.32 (exc GST)
  • 10+ $97.18 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This Arducam module uses the same 12MP image sensor as the Raspberry Pi High-Quality Camera, but offers a mechanical IR cut-off filter switched automatically based on light conditions. The official RPi HQ camera is not sensitive to infrared, and there probably won’t be a NoIR version. This Arducam camera module not only offers sensitivity to infrared but also keeps the natural feeling during daylight. It’s fully compatible with all Raspberry Pi models with a camera connector.

Applications

  • DSLR Camera Control
  • Remote Viewing Camera
  • Time-lapse Machine
  • Security System
  • Smart Video Doorbell
  • Face Recognition
  • Instant (Polaroid-Style) Camera, etc.

Specifications

Optical Size 1/2.3" (diagonal 7.857mm)
Resolution 12.3MP
Active Pixels 4056(H) x 3040(V)
Pixel Size 1.55um x 1.55um
Frame Rates 4056x3040@10fps, 4k@10fps, 1080p@30fps, 720p@60fps and 640×480p@60/90fps
Shutter Type Rolling Shutter
Interface 2-lane MIPI CSI-2
Default Lens Mount CS-Mount
Lens Type CS Lens
Focal Length 6mm
F.NO 1.4
MOD 0.2
Back Focal Length 7.53mm
Lens Dimension F30×31mm
Focus Type Manual Focus
Field of View(FOV) 65°(H)
IR Sensitivity Motorized IR cut filter
Hole Pitch Compatible with 29mm, 30mm, 34mm
Peaking Current 300mA
Camera Board Size 38mm x 38mm

Package Includes

  • 1 x 12.3MP IR-CUT camera module
  • 1 x 6mm focal length CS-mount camera lens
  • 1 x 300mm/3.15inch 22pin camera cable for pi Zero&W
  • 1 x 300mm/12inch 15pin to 22pin camera cable for pi A&B series

Note

  • The Raspberry Pi board is not included in the package
  • Our camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:
    1. Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.

    2. Extra work, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performances of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

  • This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact us at [email protected].

Documentation

Video

Arducam Switchable IR-Cut HQ Camera for Raspberry Pi, Auto Switch for both Day and Night
