Adafruit TPS61169 Constant Current Boost Converter for LEDs

SKU: ADA6354 Brand: Adafruit
The Adafruit Constant Current Boost Converter for LEDs makes driving LEDs easy, whether they're in series or parallel - with a chip that can generate...
$9.80 AUD, inc GST
$8.91 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 09 and Jul 14

Quantity Discounts:

  • 10+ $8.55 (exc GST)
  • 25+ $8.28 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

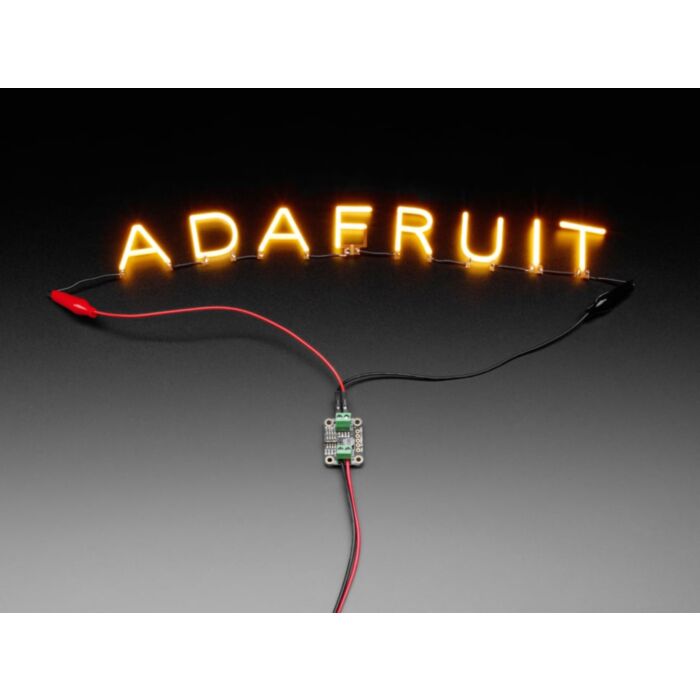

The Adafruit Constant Current Boost Converter for LEDs makes driving LEDs easy, whether they're in series or parallel - with a chip that can generate up to 40V and 400mA from 3~5V input. Unlike most of Adafruit's booster chips that generate a fixed voltage (like 5V, or 12V) the TPS61169 increases the voltage until a set current is being drawn. That makes it excellent for LEDs, that are specified in current not voltage. Perfect for use with Adafruit's LED nOOds and filaments, where sometimes you need up to 12V or 24V, at 200mA or so. Also excellent when you have a bunch of 3V LEDs in series, so they add up to a high voltage, but only at 25mA or 50mA.

Adafruit have used the TPS61169 in Adafruit's boards with LED backlights: its pretty common to see 5 to 7 white LEDs in series, and a 30mA current requirement. Adafruit like this chip because it has a 1.2A internal switch and automatic over-voltage protection in case the output is disconnected. You can also dim the LEDs via the PWM input pin. It's quiet, efficient, and fairly cool, with 90% efficiency. Since its constant current its not good when you need a fixed and stable voltage output like 5V - for those cases, use our everyday boosters.

Note that you can get up to 40V and up to 400mA but not at the same time. To figure out the approximate power output you can achieve, use the formula: Iout = (Vin * 1.2A * 0.9 efficiency) / Vout. So for example, with 5V input, and approx. 12V output you can get 450mA out (the board is limited to 400mA on the switches). For a 24V nOOd, you can get about 225mA out. The current is selectable via mini DIP switches, the default is 25mA, and each switch adds 25mA/50mA/100mA/200mA for a total of 400mA.

You get one fully assembled breakout with a TPS61169 and required passive components, and a small bit of header. Give 3 to 5V DC on the IN and Ground pins or terminal block. Connect your LEDs on the output port, and you're instantly in business! Note if the output is shorted or opened, you may need to power cycle the chip to get it out of safe-shutdown mode.

Technical Details

Product Dimensions: 25.2mm x 19.0mm x 10.1mm / 1.0" x 0.7" x 0.4"

Product Weight: 3.8g / 0.1oz

    This product is listed in:

    Breakouts & Modules>LED Drivers
