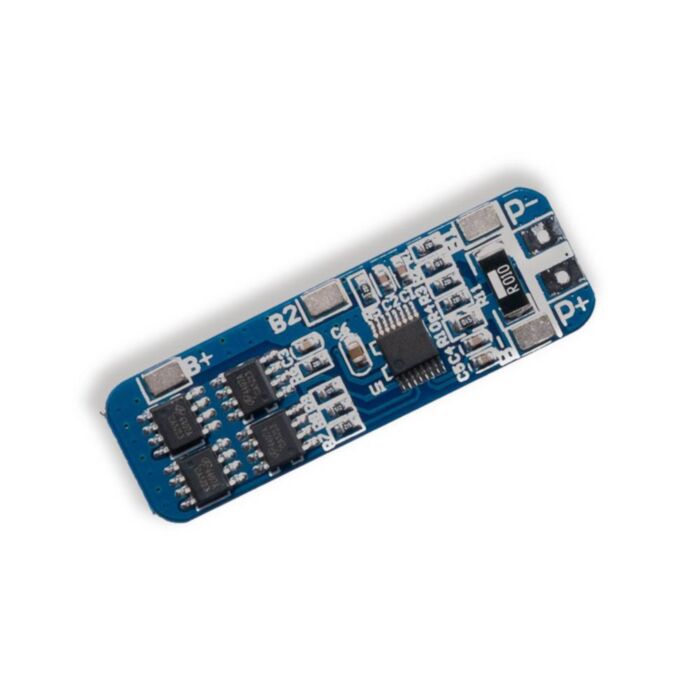

3 Cell 18650 BMS Module

Rating:

100% of 100

1 Review

SKU: CE09207 Brand: Core Electronics

Make your own 18650 Battery banks with this 3-Cell BMS module

$2.50 AUD, inc GST

$2.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

5-15 $2.23 (exc GST)
15+ $2.16 (exc GST)

Recommended Essentials:

Battery Holder - 1x18650 (wire leads)

$2.15

Soldering to a LiPo is an advanced skill - consider using a holder instead of soldering/spot welding to batteries

Connect 3 18650 cells together to create your own battery packs! Simply connect it to a charger momentarily to wake up the BMS.

Check out this forum discussion for an interesting dive into these BMS modules!

Connection Diagram

18650 battery connection

Features

Allows for 3 18650 cells to be combined in series
Nominal voltage: 11.1 V
In-built over-charge, over-discharge, short circuit, and over-current protection
Charge and discharge the battery pack through the P+ and P- pads
Charge using a regulated 12.6V supply (A constant current, constant voltage supply is highly recommended)
Small footprint at - ~ 50 x 16 x 1 mm

Specifications

Maximum continuous discharge current: 5 - 8 A
Peak discharge: 10 A
Over-charge Voltage Range: 4.25~4.35 V ± 0.05 V (Per 18650 cell, charger dependent)
Over-discharge Voltage Range: 2.3-3.0v±0.05v (We advise to also include a shutoff circuit to limit discharge)
Internal resistance: ＜ 100mΩ
Working Temperature: -40 ~ +50 °C
