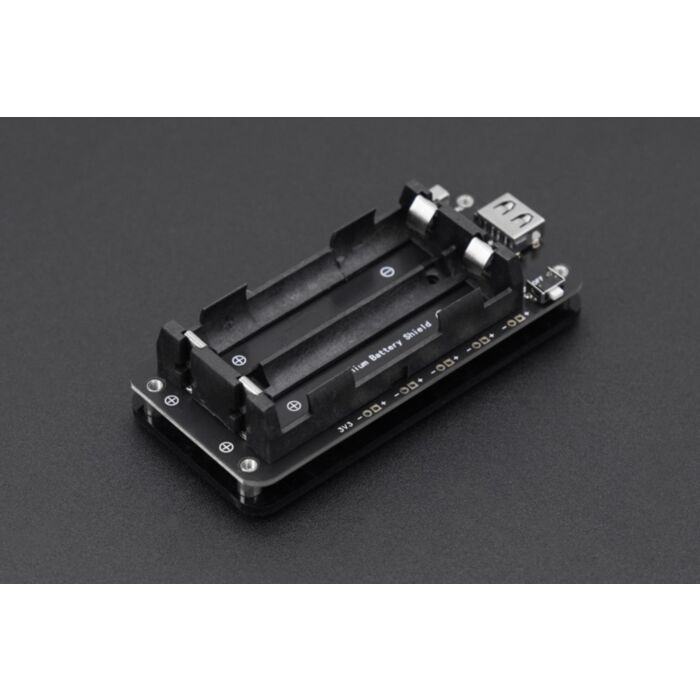

2-Way 18650 Battery Holder

Rating:
100% of 100
SKU: DFR0969
This easy-to-use 16850 battery holder with dual-slot offers micro and type-C charging inputs, five 5V/2A output ports, five 3.3V/1A output ports and one...
$19.51 AUD, inc GST
$17.74 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 18th of Jul

Quantity Discounts:

  • 10+ $17.47 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This easy-to-use 16850 battery holder with dual-slot offers micro and type-C charging inputs, and it can be installed with two 18650 batteries. It features 5V and 3.3V output with a variety of connection points.

The 5V/2A output can be connected via five through-hole connections or one USB-A socket and the 3.3V/1A output has five through-hole connections.

It comes with overcharge and over-discharge protections that greatly extend the lifespan of your 18650 battery. The onboard DIP switch allows users to switch between HOLD and NORMAL modes. In Normal mode, the auto shutdown triggers when the load current falls below 120mA, while in HOLD mode, the module keeps outputting and does not shut down until the over-discharge protection is triggered or the current load falls below 40mA.



2-Way 18650 Battery Holder

2-Way 18650 Battery Holder

Notes

This battery holder has a maximum current of 3 Amps (3A is not recommended), which will depend on the rating of the 18650 batteries used.

Pay attention to battery polarity when installing. The + and - are clearly marked on the board, and the wrong direction will burn the module.

Note that this board does not support charging and discharging at the same time. It may not be used as a UPS.

Features

  • With overcharge and over-discharge protections

Specification

  • Output current:

    • Total Maximum 3 Amps

    • Up to 2 Amps for 5V connections

    • Up to 1 Amp for 3.3V connections

  • Protection: with overcharge and over-discharge protection

  • Input: Micro and Type-C input

  • Outputs:

    • 1x USB output

    • 5x 3.3V

    • 5x 5V

  • LED indicator (blinking means charging, stop blinking means fully charged

  • Autoshutdown below 120mA (normal mode) or 40mA (hold mode)

Parts List

  • 2-Way 18650 Battery Holder x1
