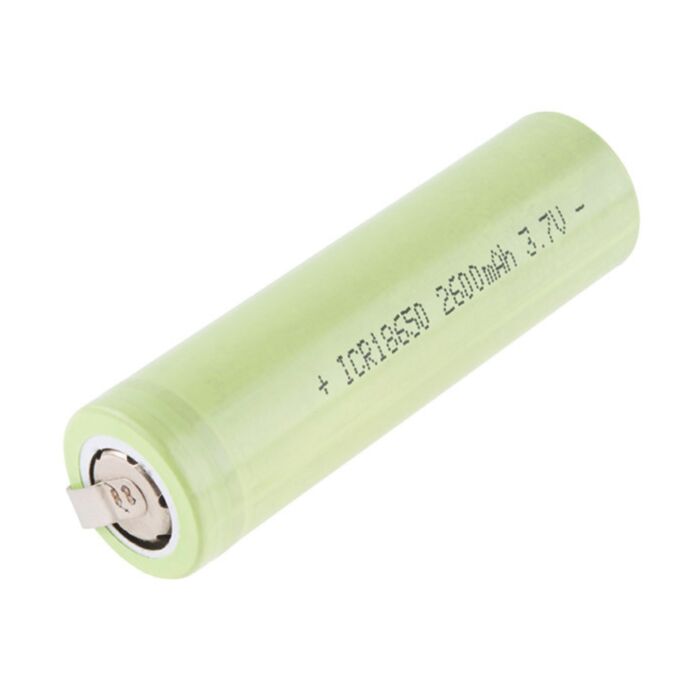

Polymer Lithium Ion Battery (LiPo) 18650 Cell (3.7V 2600mAh, Solder Tab)

This is the same 18650 Lithium Ion Cell that you know and love, but now includes pre-attached solder tabs! These round high capacity cells have been mainly used in flashlight type applications but with its capability to be used as a drop-in rechargable cell at 3.7V with a capacity of 2600mAh. This battery has been made even better with the attached solder tabs. You now have a much wider range of applications to drop this battery into while still remaining simple to install!

These 18650 Cells have a standard discharge current of 0.2C to a maximum of 1C and can handle about 300 charge cycles.

Dimensions

65mm x 18.2mm (2.6" x 0.7")

Solder tabs are 4.5mm wide, and 18mm long (both ±0.5mm)

Documents

• MSDS
