Adafruit Mono 2.5W Class D Audio Amplifier - PAM8302

Rating:
100% of 100
SKU: ADA2130 Brand: Adafruit Guides (1)
This super small mono amplifier is surprisingly powerful - able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the miniature chip is a class...
$8.60 AUD, inc GST
$7.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10-25 $7.51 (exc GST)
  • 25+ $7.27 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

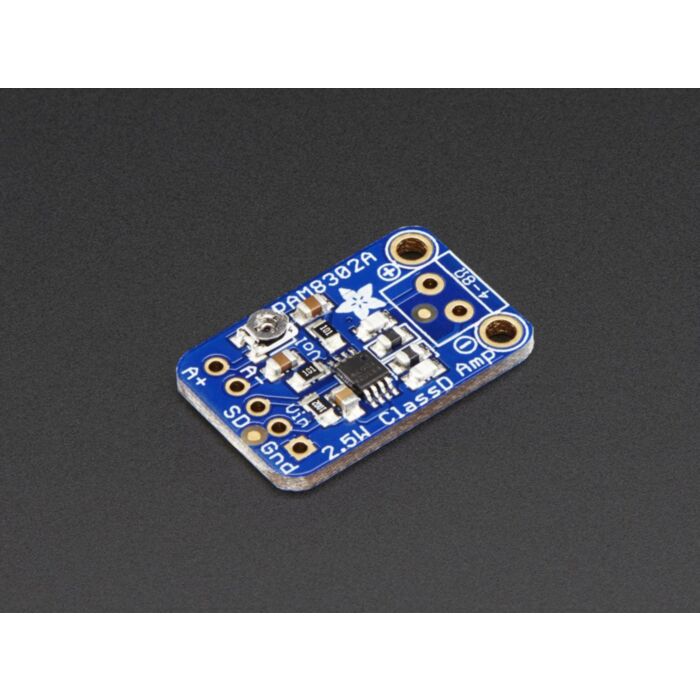

This super small mono amplifier is surprisingly powerful - able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0V-5.5VDC. Since the amp is a class D, its very efficient (over 90% efficient when driving an 8O speaker at over half a Watt) - making it perfect for portable and battery-powered projects. It has built in thermal and over-current protection but Adafruit could barely tell it got hot. There's even a volume trim pot so you can adjust the volume on the board down from the default 24dB gain. This board is a welcome upgrade to basic "LM386" amps!

The A+ and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully 'differential' - if you don't have differential outputs, simply tie the Audio- pin  to ground. The output is "Bridge Tied" - that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil - the high frequencies are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly.

Comes with a fully assembled and tested breakout board. They also include header to plug it into a breadboard and a 3.5mm screw-terminal blocks so you can easily attach/detach your speaker. You will be ready to rock in 15 minutes! Speaker is not included, use any 4 ohm or greater impedance speaker.

  • Output Power: 2.5W at 4O, 10% THD, 1.5W at 8O, 10% THD, with 5.5V Supply
  • 50dB PSRR at 1KHz
  • Filterless design, with ferrite bead + capacitors on output.
  • Fixed 24dB gain, onboard trim potentiometer for adjusting input volume.
  • Thermal and short-circuit/over-current protection
  • Low current draw: 4mA quiescent and 1uA in shutdown mode


Technical Details

Dimensions (without 0.1" header):

  • 15mm x 24mm x 2mm / 0.6" x 0.9" x 0.08"
  • Weight: 1.4g
