Makerverse PAM8302 2.5W Mono Amplifier

Rating:

100% of 100

2 Reviews

SKU: CE08263 Brand: Makerverse Guides (1)

A tiny, low-noise amplifier to bring sound to your project.

$5.50 AUD, inc GST

$5.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

4-12 $4.75 (exc GST)
12+ $4.50 (exc GST)
50+ $4.25 (exc GST)

Recommended Essentials:

Enclosed Speaker - 8 Ohm, 5 Watt

$5.65

Makerverse M3 Mounting Kit

$3.20

This product is featured in the Makerverse Audio Kit. For more technical resources, or to see it in action, head to the Kit Guide.

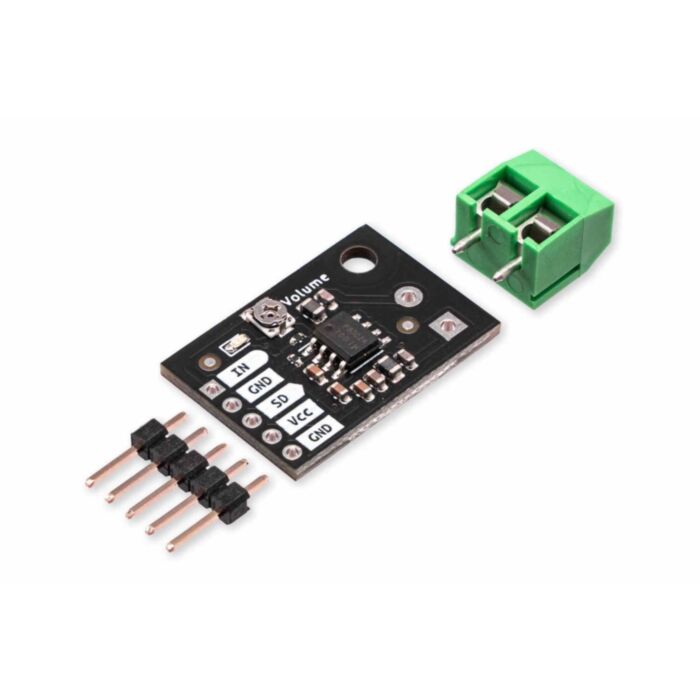

The Makerverse™ PAM8302 2.5W Mono Amplifier is a simple audio amplifier with low noise and a tiny footprint. Combine it with our favourite speaker to bring sound to your projects - We feature these parts in our Makerverse Audio Kit. Check out the guide if you want to see (and hear) them in action!

The PAM8302A is a class D amplifier module rated to 2.5W (Vcc = 5.5V driving a 4 Ohm speaker). It is designed for operation between 1.8V and 5.5V and can drive 4 Ohm or 8 Ohm speakers.

The amp features a volume control potentiometer and screw terminal for easy speaker connection. At maximum volume, the module has a fixed voltage gain of 23.5 dB (15 times).

An output filter is included to allow for use with long (>20cm) speaker wires without causing excessive radio interference.

Features

Tiny, low noise
Adjustable volume
A great guide to get you started
Pin header and screw terminals provided
Manufactured and supported in Australia by Core Electronics

Technical Specifications

Supply: 1.8 to 5 V
Speaker Impedance: 4 or 8 Ohm
Gain (max): 23.5 dB
Mounting Holes: 1x M3

Pinout

Pin	Description
IN	Audio signal in
GND	Signal ground
SD	Shutdown, active low with onboard pull-up
Vcc	1.8V to 5.5V power in, 350mA max
GND	Power ground
