Adafruit SHARP Memory Display Breakout - 2.7 400x240 Monochrome

Rating:

100% of 100

SKU: ADA4694 Brand: Adafruit

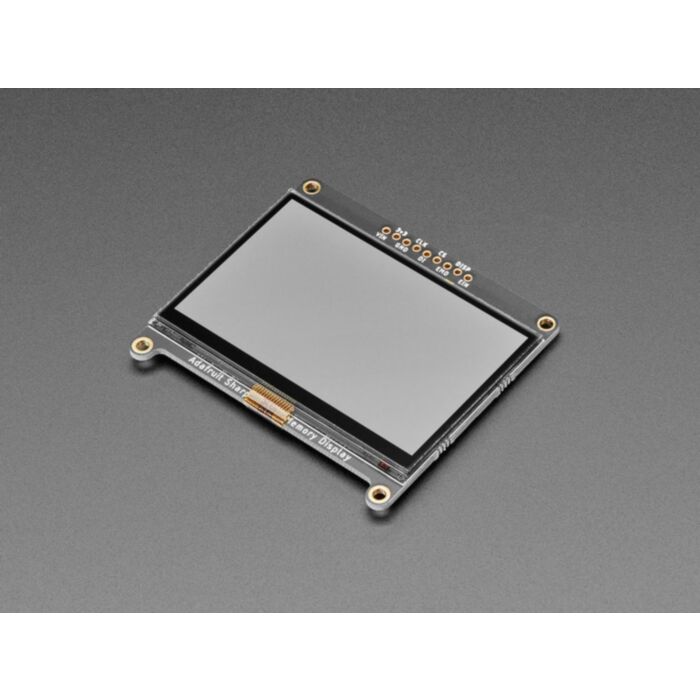

The Adafruit 2.7" 400x240 SHARP Memory Display Breakout is a chonky cross between an eInk (e-paper) display and an LCD. It has the ultra-low power usage of eInk and the fast-refresh rates of an LCD.

$92.30 AUD, inc GST

$83.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6-12 $81.39 (exc GST)
12+ $79.71 (exc GST)

The Adafruit 2.7" 400x240 SHARP Memory Display Breakout is a chonky cross between an eInk (e-paper) display and an LCD. It has the ultra-low power usage of eInk and the fast-refresh rates of an LCD. This model has a gray background, and the pixels show up as black-on-gray for a nice e-reader type display. It does not have a backlight, but it is daylight readable. For dark/nighttime reading you may need to illuminate the LCD area with external LEDs.

The bare display is 5V powered and 3V logic, so they placed it on a fully assembled-and-tested breakout board with both a 3V regulator, 5V boost converter, and level shifting circuitry. Now you can use it safely with 3 or 5V power and logic. The bare display slots into a ZIF socket on board, and Adafruit use a piece of double-sided tape to adhere it. Comes with four mounting holes so you can easily attach it to your project.

The display is 'write only' which means that it only needs 3 pins to send data. However, the downside of a write-only display is that the entire 400x240 bits (13.5 KB) must be buffered by the microcontroller driver. That means you cannot use this with an ATmega328 (e.g. Arduino UNO) or ATmega32u4 (Feather 32u4, etc). You must use a high-RAM chip such as ATSAMD21 (Feather M0), Teensy, ESP8266, ESP32, etc. On those chips, this display works great and looks fantastic.

Check out Adafruits detailed guide for wiring diagrams, schematics, libraries, code, Fritzing objects, etc!
