Adafruit Feather STM32F405 Express

SKU: ADA4382 Brand: Adafruit

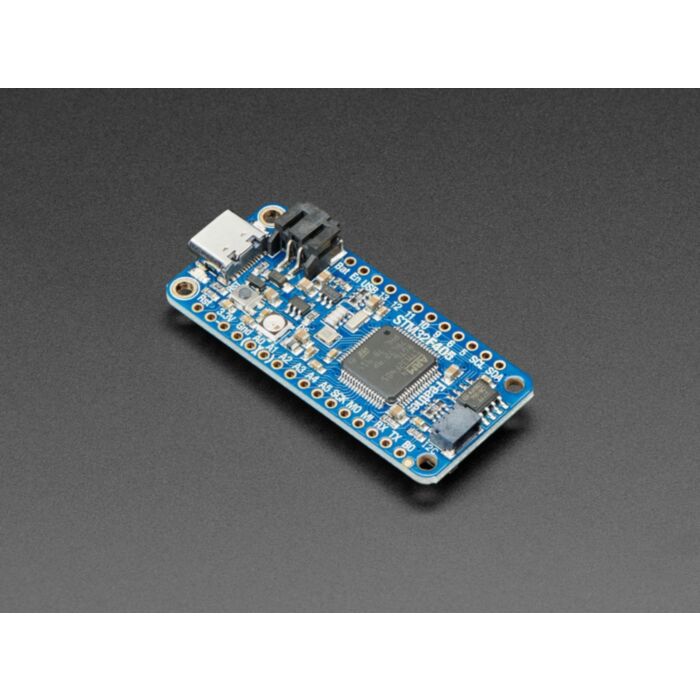

ST takes flight in this upcoming Feather board. The new STM32F405 Feather that Adafruit designed runs CircuitPython at a blistering 168MHz – Adafruits fastest CircuitPython board ever!

$80.30 AUD, inc GST

$73.00 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 20

Quantity Discounts:

6-12 $70.08 (exc GST)
12+ $67.89 (exc GST)

ST takes flight in this upcoming Feather board. The new STM32F405 Feather (video) that Adafruit designed runs CircuitPython at a blistering 168MHz – Adafruit's fastest CircuitPython board ever! Adafruit put a STEMMA QT / Qwiic port on the end, so you can really easily plug and play I2C sensors.

This Feather has lots of goodies:

STM32F405 Cortex M4 with 1MB Flash, 168MHz speed
3.3V logic, but almost all pins are 5V compliant!
USB C power and data - Adafruit's first USB C Feather!
LiPo connector and charger
SD socket on the bottom, connected to SDIO port
2 MB SPI Flash chip
Built in NeoPixel indicator
I2C, UART, GPIO, ADCs, DACs
Qwiic/STEMMA-QT connector for fast I2C connectivity
Adafruit use the built-in USB DFU bootloader to load firmware. It does not come with a UF2 bootloader.

With CircuitPython basics running on this board, it's fast to get all Adafruit's drivers working, then use the built in plotter in Mu to instantly get sensor data displaying within 3 minutes of unboxing.

You can use MicroPython, CircuitPython or Arduino IDE with this board, with some caveats. This board and chipset is new so expect rapid developments and updates!

CircuitPython support is under development. Adafruit have digital IO, analog in/out, I2C, SPI, PWM working so far and more on the way. For example, the SDIO SD card is not yet supported natively. DisplayIO is also not yet supported.
Arduino is supported through STM32duino. There's no auto-reset bootloader support yet so you have to pull the BOOT0 pin high and manually reset before uploading. That said, STM32 support is really good, and Adafruit were able to run just about every sketch Adafruit tried.
MicroPython support is very solid but Adafruit does not provide MicroPython libraries for sensors!

Adafruit tested this in Arduino STM32duino with all Adafruit's FeatherWings and only the RFM69/RFM9x libraries did not work (they are very platform specific). Its an extraordinarily fast Feather, and Adafruit's first foray into STM32 - very exciting!

Technical Details

Product Dimensions: 52.0mm x 23.0mm x 10.0mm / 2.0" x 0.9" x 0.4"

Product Weight: 6.2g / 0.2oz

Schematic

This product is listed in:

Development Boards>STM32
