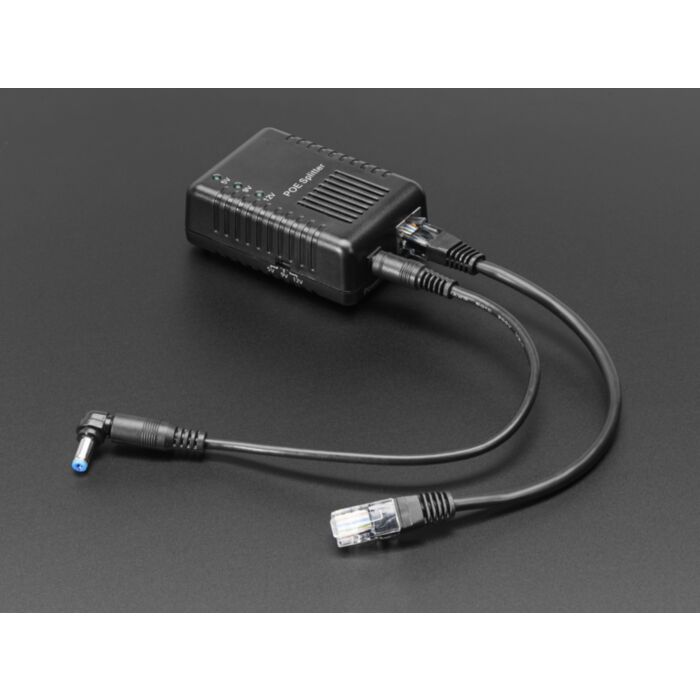

802.3af PoE Output Data & Power Splitter - 5/9/12V

Rating:

100% of 100

SKU: ADA3239 Brand: Adafruit

Power over Ethernet (PoE) splitters can make your project wiring a breeze - and best of all they work to connect any 802.3af-capable router to any Ethernet device...

$58.65 AUD, inc GST

$53.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

6-12 $51.18 (exc GST)
12+ $49.58 (exc GST)

Power over Ethernet (PoE) splitters can make your project wiring a breeze - and best of all they work to connect any 802.3af-capable router to any Ethernet device, even if it doesn't natively support PoE! The splitter takes a unified PoE signal (data and power) from one cable, and then separates the data (Ethernet) and power (+12VDC regulated) into two different lines for non-PoE devices.

This is an economical, practical, high-performance, and reliable Multi-Voltage (5V, 9V or 12V) PoE Output Splitter based on IEEE 802.3af standard. It can divide power and data signals from a network cable, and can be used with any PoE power supply equipment (PoE injector) that is compatible with IEEE 802.3af, and supply power and data for non-PoE network equipment.

Features:

IEEE 802.3af compliant
Supports 10/100M data transmission
44V-57V power voltage input makes it very convenient to use direct current DC48V power from generator room or PoE power supply equipment, standard or non-standard PoE injector, PoE switch, etc.
Supplies 1 Amp regulated DC power on a DC barrel jack - suitable for small projects.
DIP switch for 5V, 9V, and 12V adjustable output power
Comes with a variety of DC plugs with positive-tip output: 5.5mm/2.5mm, 5.5mm/2.1mm, 4.8mm/1.8mm, 3.4mm/1.3mm

For use only with true 802.3af routers! If you don't have a PoE injector / hub / router, check out Adafruit's passive PoE cable kit

Technical Details

Power OUT cable length: 280mm / 11"
Data OUT cable length: 263mm / 10.5"

Product Dimensions: 80.0mm x 55.0mm x 30.0mm / 3.1" x 2.2" x 1.2"

Product Weight: 66.7g / 2.4oz
