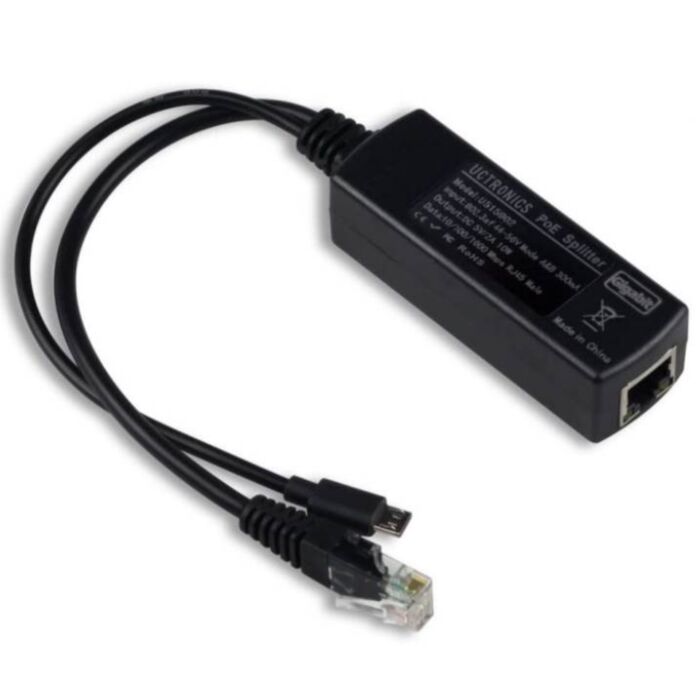

UCTRONICS PoE Splitter Gigabit 5V - Micro USB Power

SKU: AC-U515902 Brand: UCTRONICS

Supply power and transfer data to micro USB powered devices like RPi 3B+ via a single Ethernet cable

$25.20 AUD, inc GST
$22.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $22.22 (exc GST)
  • 25+ $21.76 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The UCTRONICS gigabit PoE splitter is used to supply power and transfer data to micro USB powered devices like RPi 3B+ via a single Ethernet cable with the help of an IEEE 802.3af compliant switch or injector. You don't need a separate power supply anymore. It uses no GPIO pins and is thus compatible with any 3b+ case with a fan or add-on 3b+ screen. It has plug-and-play compatibility with 3B+ and makes it easier for deployment, operation and maintenance in embedded and IoT projects.
Uctronics Poe splitter u515902

Features

  • 5V/2.4A & 1000Mbps - Power micro-USB devices via an Ethernet cable, along with gigabit data transfer (which you can put aside if you only need power)
  • PoE HAT Alternative - Use no GPIO pins. Compatible with Raspberry Pi case with fan or add-on screen. Support Raspberry Pi 3b+ and previous models
  • Extend Powerline - Deliver power to micro USB devices without nearby AC outlets and upgrade them to PoE (Power over Ethernet) from up to 400 feet
  • Replace Power Supply - Remove the need for a separate power supply if the Ethernet cable is a must-have for your micro USB devices
  • Save Your Time - Plug and play compatibility and quick seller response. NOTE: an 802.3af compliant PoE injector/switch is required to use this device (not included)

Specifications

  • Compliant with IEEE 802.3af
  • Isolation: 2.5kV
  • Input: 802.3af 44-56V Mode A&B 300mA
  • Power Output: DC 5V/2A(up to 2.5A) 10W
  • Data Transfer rate: 10/100/1000 Mbps
  • Devices will be detected before poe input
  • Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)

Package Including

  • 1pcs 48V to 5V Active PoE Splitters Micro USB Power Plug

Additional Resources
