6-Pin Single-Ended Female JST SH-Style Cable 12cm

SKU: POLOLU-4762 Brand: Pololu

This 12 cm (4.5") cable has six 28 AWG wires and a 6-pin female JST SH-type connector that works with our Micro Metal Gearmotor Encoders with top-entry...

$2.05 AUD, inc GST

$1.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

10-25 $1.81 (exc GST)
25+ $1.77 (exc GST)

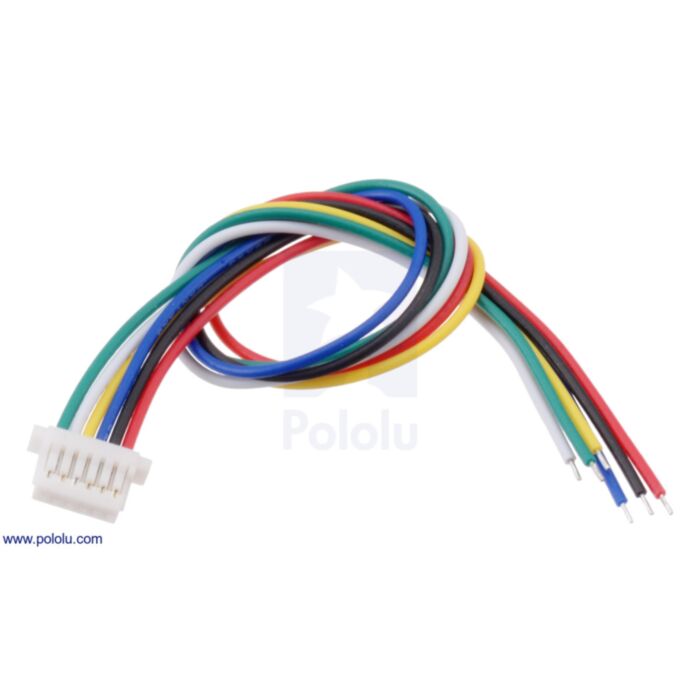

This cable is designed to work with Pololu's Micro Metal Gearmotor Encoders with top-entry connector and with side-entry connector. It consists of six 28 AWG color-coded wires that are terminated on one end by a female JST SH-type connector.

The other ends of the wires are unterminated and can be cut to match the length of your application. You can use Pololu's male or female crimp pins and crimp connector housings to make a connector for the unterminated end of the cable that is compatible with standard solderless breadboards, perfboards, 0.1" male headers, and 0.1" female headers.

This cable also works with Pololu's JST SH-style connector breakout board (available in top-entry and side-entry versions):

Use with Micro Metal Gearmotor Encoders

When used with Pololu's encoders, the wire color scheme is as follows:

Color	Function
Red	motor power (connects to one motor terminal)
Black	motor power (connects to the other motor terminal)
Blue	encoder Vcc
Yellow	encoder A output
White	encoder B output
Green	encoder GND

For more information on how to use the encoders, see the encoder product pages.

Available options

Pololu's single-ended cables are available in three cable lengths:

Pololu also have twisted female-female cables with JST SH-style connectors on both ends available in five lengths:

People often buy this product together with:

Pololu Ball Caster with 3/8" Metal Ball

Pololu Micro Metal Gearmotor Bracket Pair - Black

Magnetic Encoder Pair Kit with Top-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V

Dimensions

Pins:	1×6
Length:	12 cm
Weight:	1 g

General specifications

Gender:	Female-unterminated
Wire gauge:	28 AWG
Connector:	JST SH-type
