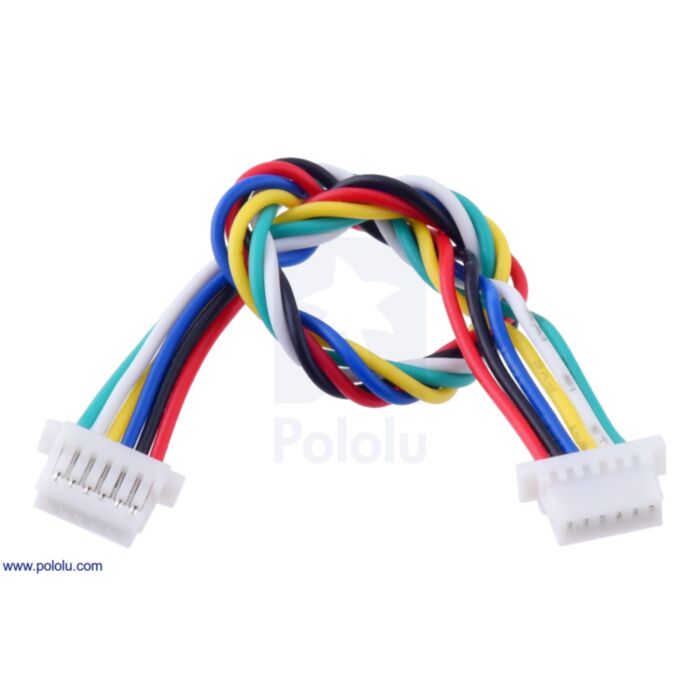

This cable is designed to work with Pololu's Micro Metal Gearmotor Encoders with top-entry connector and with side-entry connector. It consists of six twisted 28 AWG color-coded wires that are terminated on both ends by female JST SH-type connectors.
You can use the cable to connect an encoder to Pololu's JST SH-style connector breakout board (available in top-entry and side-entry versions), allowing you to easily access the motor and encoder pins on a standard solderless breadboard. Alternatively, a cable with two connector breakout boards could serve as a removable general-purpose interconnect between different parts of a modular system.
Use with Micro Metal Gearmotor Encoders
When used with Pololu's encoders, the wire color scheme is as follows:
Color | Function |
---|---|
Red | motor power (connects to one motor terminal) |
Black | motor power (connects to the other motor terminal) |
Blue | encoder Vcc |
Yellow | encoder A output |
White | encoder B output |
Green | encoder GND |
For more information on how to use the encoders, see the encoder product pages.
Available options
Pololu's female-female cables are available in five lengths:
Pololu also have single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, available in three cable lengths:
People often buy this product together with:
Magnetic Encoder Pair Kit with Top-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V |
Magnetic Encoder Pair Kit with Side-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V |
6-Pin Single-Ended Female JST SH-Style Cable 12cm |
Dimensions
Pins: | 1×6 |
---|---|
Length: | 10 cm |
Weight: | 1.5 g |
General specifications
Gender: | Female-Female |
---|---|
Wire gauge: | 28 AWG |
Connector: | JST SH-type |
