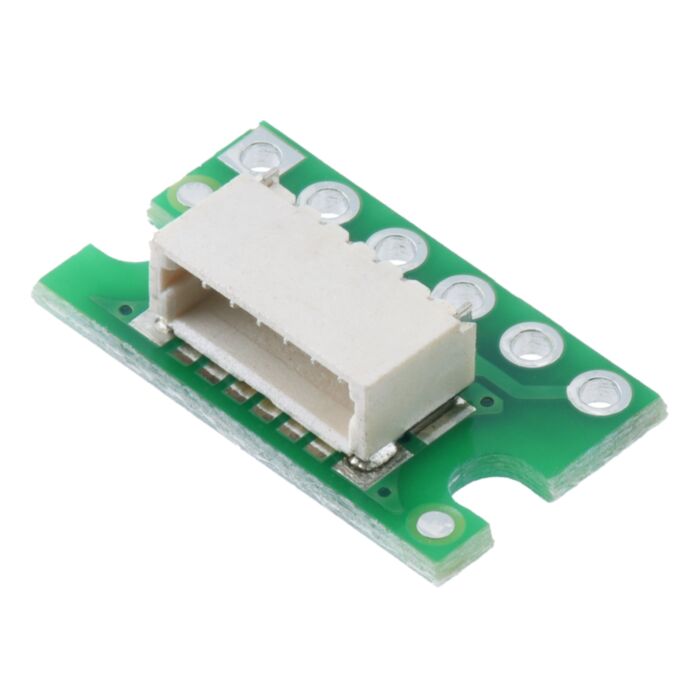

Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry (Individually Packaged)

SKU: POLOLU-4772 Brand: Pololu

This simple board serves as an adapter between a JST SH-style 6-pin male connector and breadboard-compatible 0.1"-pitch through holes. It works with our ...

$2.15 AUD, inc GST

$1.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 30th of Apr

Quantity Discounts:

10-25 $1.90 (exc GST)
25+ $1.85 (exc GST)

This is a breakout board for a 6-pin male JST SH-type connector that provides access to each pin on a row of 0.1"-pitch through holes, making it compatible with standard solderless breadboards. The through-holes work with standard 0.1" (2.54 mm) male headers and 0.1" female headers, which are available separately.

This board can be used with Pololu's Micro Metal Gearmotor Encoder with top-entry connector or with side-entry connector, along with a female-female JST SH-style cable (available in 10 cm, 16 cm, 25 cm, 40 cm, and 63 cm lengths). When used this way, the breakout provides convenient access to the motor and encoder pins on a breadboard, and the pins are labeled on the board’s bottom silkscreen with this application in mind.

Alternatively, this board can serve as a general-purpose breakout for other applications; for example, a pair of connector breakouts with a female-female cable could be used as a removable general-purpose interconnect between different parts of a modular system.

Details for item #4772

This item is a single individually-packaged board with a side-entry connector that is fully tested. Alternatively, you can get a 3-pack of boards with side-entry connectors that have not been electrically tested and are offered at a discounted price to reflect this.

Pololu also offer a version with a top-entry connector, either individually packaged or in a 3-pack and untested.

Compatible cables

Pololu have a variety of cables that work with this breakout board.

Twisted female-female cables with female JST SH-style connectors on both ends are available in five lengths:

Single-ended cables, with a female JST SH-style connector on one end and unterminated wires on the other end, are available in three cable lengths:

Use with Micro Metal Gearmotor Encoders

When used with Pololu's encoders and JST SH-style cables, the wire color scheme is as follows:

Color	Function
Red	motor power (connects to one motor terminal)
Black	motor power (connects to the other motor terminal)
Blue	encoder Vcc
Yellow	encoder A output
White	encoder B output
Green	encoder GND

For more information on how to use the encoders, see the encoder product pages.

People often buy this product together with:

Magnetic Encoder Pair Kit with Side-Entry Connector for Micro Metal Gearmotors, 12 CPR, 2.7-18V

6-Pin Female-Female JST SH-Style Cable 10cm

6-Pin Female-Female JST SH-Style Cable 16cm

Dimensions

Size:	0.6" × 0.35" × 0.16"
Weight:	0.5 g

General specifications

Connector:	side-entry, 6-pin male, JST SH-type

Identifying markings

PCB dev codes:	con01a
Other PCB markings:	0J12804

File downloads

Dimension diagrams of the Breakout for JST SH-Style Connector, 6-Pin Male (371k pdf)

This file contains dimension diagrams for the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
3D models of the Breakout for JST SH-Style Connector, 6-Pin Male (1MB zip)

This file contains 3D models (in the step file format) of the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
Drill guides for the Breakout for JST SH-Style Connector, 6-Pin Male (23k dxf)

These DXF drawings show the locations of all of the holes on the Breakout for JST SH-Style Connector, 6-Pin Male Top-Entry and the Breakout for JST SH-Style Connector, 6-Pin Male Side-Entry.
