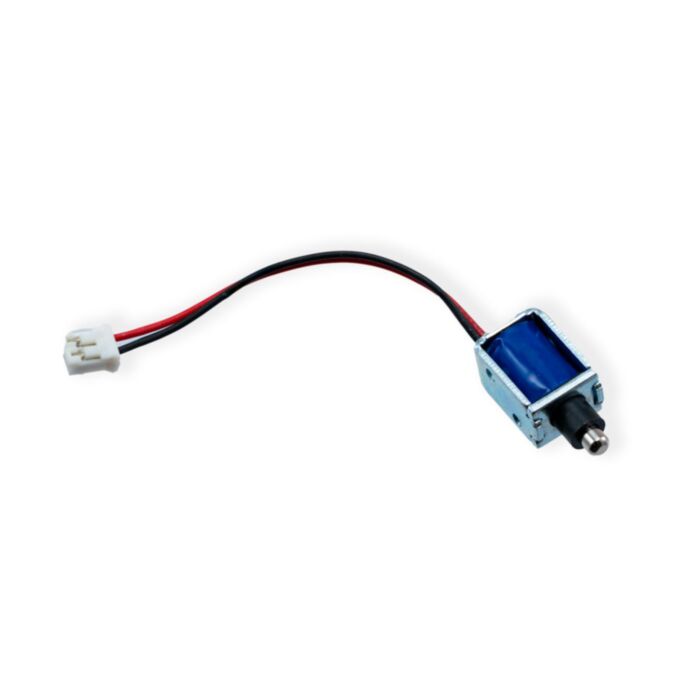

5V Small Solenoid

SKU: CE09448 Brand: Core Electronics

Use this cute solenoid to make locks for dioramas, hit a bell or anywhere you need small and quick linear movement.

$9.45 AUD, inc GST
$8.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 15th of Oct

- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Use this cute solenoid to make locks for dioramas, hit a bell or anywhere you need small and quick linear movement.

The solenoid comes with a pre-crimped JST-PH (2mm pitch) connector, but shoving some jumper wires in lets you use it with headers, screw terminals or breadboards (make sure you get a professional breadboard to handle more power!)

Use a MOSFET or relay to switch the solenoid on and off, and power everything with a 5V plug pack.

Specifications

  • Current consumption @ 5V: 0.85A (We've found it to actuate at no load @3V with 0.5A).
  • Dimensions: 18.9mm with the mechanism retracted, 21mm un-actuated, width: 10.5mm, height: 9.2mm.
