5M RGB LED Strip - WS2812B 60 Per Meter - White Strip - Weatherproof

Rating:
98% of 100
SKU: CE04854 Brand: Core Electronics Guides (5)
This is a roll of addressable (WS2812B) RGB LEDs. Each LED has a built-in controller chip which allows you to daisy-chain the LEDs and control them individually - all from a single GPIO!
$65.90 AUD, inc GST
$59.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 5-15 $58.71 (exc GST)
  • 15+ $56.92 (exc GST)
- +

34 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

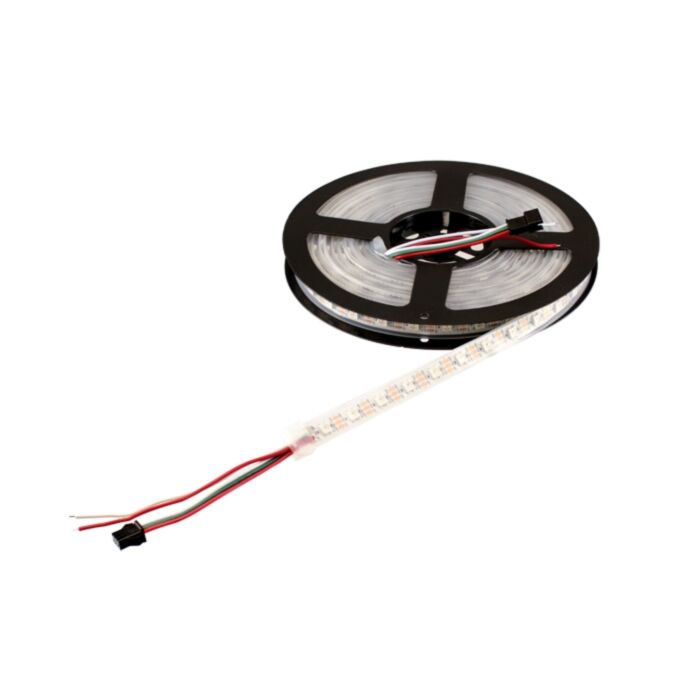

This 5 metre roll has 60 LEDs per metre on a white coloured strip.

This is a roll of addressable (WS2812B) RGB LEDs. Each LED has a built-in controller chip which allows you to daisy-chain the LEDs and control them individually - all from a single GPIO! The constant-current driver in each LED ensures that colour remains consistent, even if supply-voltage varies slightly from the optimal 5V. The LEDs are factory-calibrated to ensure you have consistent colours all the way along your strip.
The strip is weather-sealed in a flexible plastic jacket (easily removed, if desired) and terminated at each end with a 3-pin plug, and two additional power leads if high current is required.

Long strips can require a lot of current! Make sure you're using a power supply that is capable of running your project. We've listed the maximum current that these LEDs consume (full-brightness white) but for a typical, colourful display the current required is usually a lot lower. If you decide to go with a smaller power supply, experiment with the length of strip you need to find out its true current requirements. If you're unsure, we have a medium and high-current supply available.

For those of you who are looking to plug mutiple of these strips together, we have these 3-pin Pigtail Connectors.

Pinout

  • Red: 5V
  • Green: Data
  • White: Ground

Tech Specs

  • LED: WS2812B
  • Supply voltage: 5V DC
  • Logic level: 5V (often accepts 3.3V)
  • Current requirement: ~2.1 A/metre (Full-brightness white)
  • IP67 weatherproof
