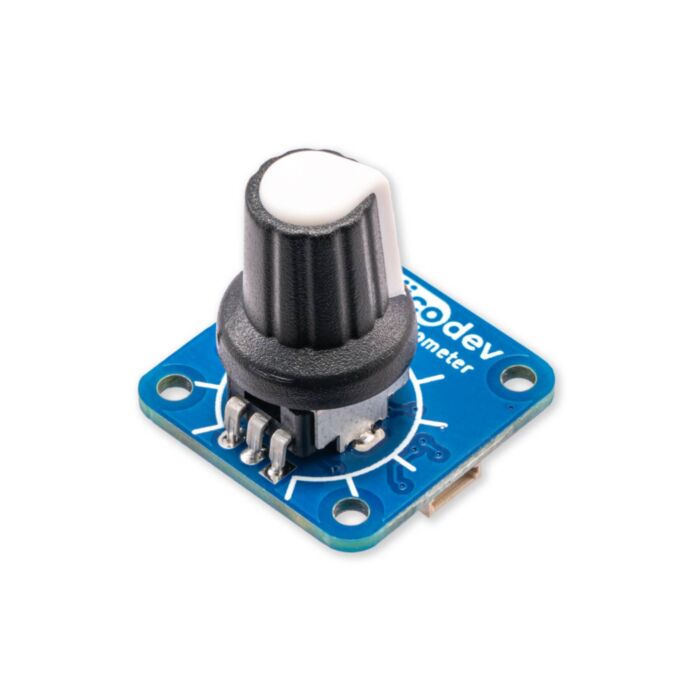

PiicoDev Potentiometer (Rotary)

Rating:

100% of 100

7 Reviews

SKU: CE08463 Brand: PiicoDev Guides (1)

Add intuitive, analogue control to your project.

$9.95 AUD, inc GST

$9.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

4-12 $8.59 (exc GST)
12+ $8.15 (exc GST)
50+ $7.69 (exc GST)

Recommended Essentials:

PiicoDev Expansion Board for Pico (Non-Recharging)

$7.70

PiicoDev Adapter for Raspberry Pi

$4.25

PiicoDev Adapter for Micro:bit

$32.90

PiicoDev Cable 100mm

$0.96

PiicoDev Cable 50mm

$0.89

Add intuitive analogue control to your project with a PiicoDev® Potentiometer - also available in slide-format. Use great pre-written examples to read the Pot, which returns a value between 0-100 by default. The Pot is re-scalable, meaning you can modify the range of values it returns across its angular range. Start small or create a huge control desk! There are two PiicoDev connectors for daisy-chained connections and four ID switches that allow connecting multiple modules together. Use PiicoDev adapters and cables for solder-free connections and follow the getting-started guide to begin programming this sensor in MicroPython with your favourite development platform.

Features

Intuitive controller for your project - connect to one or many!
Knob included (We also stock replacement colours!)
A great guide to get you started
PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
2.54mm breakout for breadboarding/prototyping
Manufactured and supported in Australia by Core Electronics

Getting Started Guides

We've prepared a getting-started guide that works with Raspberry Pi, Pico, and Micro:bit.

This component also plays a key role in the fun and creative PiicoDev Sketcher project.

Technical Specifications

I2C Address: 0x35 (default), hardware selectable (0x09 to 0x18) and user-programmable (0x08 to 0x77)
Output parameter 0.0-100.0 (default) or user-programmable.
Rotary range: 280°±10°
Dimensions: 25.4x25.4mm
Mounting Holes: 4x M2.5

Resources

Also available are PiicoDev Starter Kits - level up your projects by learning to use a wide range of modern sensors and outputs.

PiicoDev Input Device

PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
Breakout pins. Every module has a breakout section for optional advanced uses.
Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
