PiicoDev Capacitive Touch Sensor

Rating:
100% of 100
SKU: CE07816 Brand: PiicoDev Guides (4)
CE Original
Add user control to your project with three touch pad inputs.
$6.05 AUD, inc GST
$5.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 4-12 $5.23 (exc GST)
  • 12+ $4.95 (exc GST)
  • 50+ $4.67 (exc GST)
- +

899 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

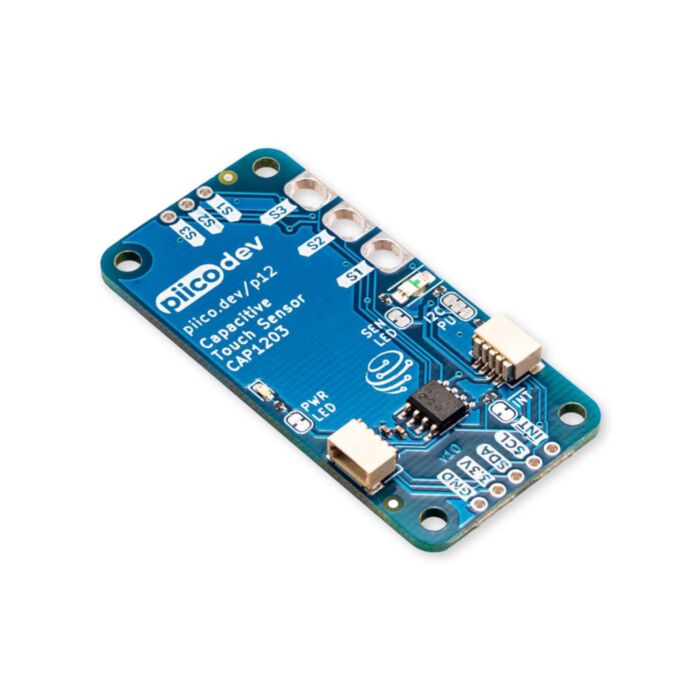

Control your project with a touch! The PiicoDev® Capacitive Touch Sensor provides three touch pads to use as inputs. The touchpads are broken out to a standard header and alligator clip connections so you can get creative and use other items as touch inputs.

  • 3 Capacitive Touch Sensor inputs
  • Supports simultaneous touch events
  • Programmable sensitivity
  • Automatically calibrates at powerup
  • Activity LED shows interrupt events
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Technical Specifications

  • I2C address: 0x28
  • Dimensions: 50.8x25.4mm
  • Mounting Holes: 2x M2.5
  • CAP1203:
    • 8kV protection
    • 3.0V to 5.5V

Resources:

Also available are PiicoDev Starter Kits - level up your projects by learning how to use modern sensors and outputs.

PiicoDev Capacitive Touch Sensor


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
