5M RGB LED Strip - WS2812B 30 Per Meter - White Strip - Weatherproof

Rating:
98% of 100
SKU: CE04853 Brand: Core Electronics Guides (5)
This is a roll of addressable (WS2812B) RGB LEDs. Each LED has a built-in controller chip which allows you to daisy-chain the LEDs and control them individually - all from a single GPIO!
$46.50 AUD, inc GST
$42.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $40.58 (exc GST)
  • 25+ $39.31 (exc GST)
- +

19 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

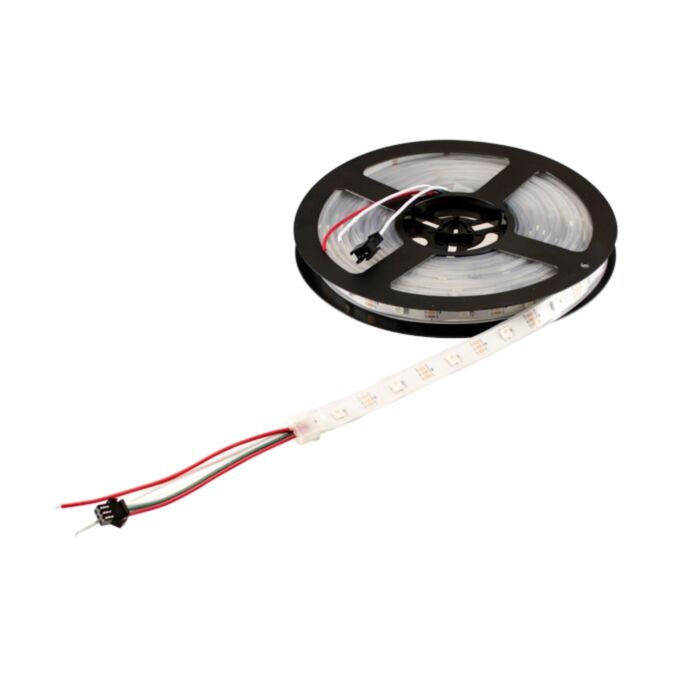

This 5-metre roll has 30 LEDs per metre on a white coloured strip.

This is a roll of addressable (WS2812B) RGB LEDs. Each LED has a built-in controller chip which allows you to daisy-chain the LEDs and control them individually - all from a single GPIO! The constant-current driver in each LED ensures that colour remains consistent, even if supply-voltage varies slightly from the optimal 5V. The LEDs are factory-calibrated to ensure you have consistent colours all the way along your strip.
The strip is weather-sealed in a flexible plastic jacket (easily removed, if desired) and terminated at each end with a 3-pin plug, and two additional power leads if high current is required.

Long strips can require a lot of current! Make sure you're using a power supply that is capable of running your project. We've listed the maximum current that these LEDs consume (full-brightness white) but for a typical, colourful display the current required is usually a lot lower. If you decide to go with a smaller power supply, experiment with the length of strip you need to find out its true current requirements. If you're unsure, we have a medium and high-current supply available.

For those of you who are looking to plug mutiple of these strips together, we have these 3-pin Pigtail Connectors.

Pinout

  • Red: 5V
  • Green: Data
  • White: Ground

Tech Specs

  • LED: WS2812B
  • Supply voltage: 5V DC
  • Logic level: 5V (often accepts 3.3V)
  • Current requirement: ~1.1 A/metre (Full-brightness white)
  • IP67 weatherproof
