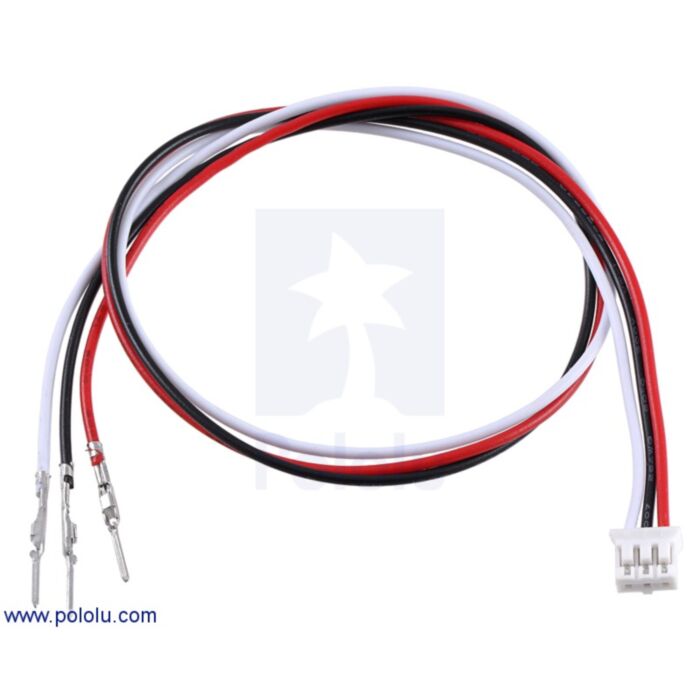

3-Pin Female JST PH-Style Cable (30 cm) with Male Pins for 0.1" Housings

Rating:

100% of 100

SKU: POLOLU-1799 Brand: Pololu

This 12-inch (30-cm) cable has 26 AWG wires with a 3-pin female JST PH-style connector that mates with the connector on 3-pin Sharp analog distance sensors. The other ends of the wire are terminated with male pins for 0.1" housing. The wire color scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

$2.95 AUD, inc GST

$2.68 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 25 and Apr 29

Quantity Discounts:

10-25 $2.60 (exc GST)
25+ $2.55 (exc GST)

This 12-inch (30-cm) cable has 26 AWG wires with a 3-pin female JST PH-style connector (2 mm) that works with Sharp analog distance sensors that have mating PH connectors, such as the 4-30 cm GP2Y0A41, the 10-80 cm GP2Y0A21, and the 20-150 cm GP2Y0A02.

Note: This cable is not compatible with the 2-15 cm Sharp GP2Y0A51, which has a JST ZH connector. For a cable that works with that sensor, consider the 3-Pin Female JST ZH-Style Cable.

The other ends of the wires are terminated with male crimp pins that are compatible with Pololu's 0.1" crimp connector housings. The wire color scheme matches the Sharp distance sensor pinout: red for power, black for ground, and white for signal.

You can use Pololu's 0.1" 3×1 crimp connector housing to make a connector that is compatible with standard 0.1" female headers included with many electronics boards.

Pololu carry a version of this cable with pre-crimped female pins (for use with 0.1" male headers). Pololu also carry a version with unterminated ends for use with custom connectors.

People often buy this product together with:

Sharp GP2Y0A21YK0F Analog Distance Sensor 10-80cm

Sharp GP2Y0A02YK0F Analog Distance Sensor 20-150cm

0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack

Dimensions

Length:	30 cm

General specifications

Gender:	Female-Male
Wire gauge:	26 AWG

File downloads

JST PH Connector Datasheet (168k pdf)

This product is listed in:

Cables>Cable Assemblies
