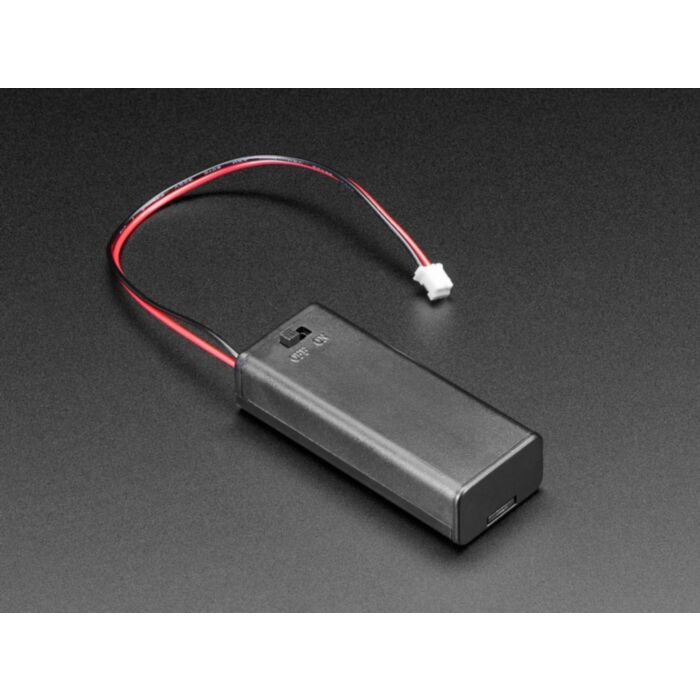

2 x AAA Battery Holder with On/Off Switch & JST PH Connector

SKU: ADA4191 Brand: Adafruit

This battery holder connects 2 AAA batteries together in series for powering all kinds of projects. Adafruit spec'd these out because the box is nicely slim, and 2 AAA's...

$4.95 AUD, inc GST

$4.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $4.32 (exc GST)
25+ $4.18 (exc GST)

This battery holder connects 2 AAA batteries together in series for powering all kinds of projects. Adafruit spec'd these out because the box is nicely slim, and 2 AAA's add up to about 3V for low-voltage electronics projects, plus it has a nifty on-off switch.

Fits any standard AAA battery. When using rechargeable NiMH the output voltage will range from about 2.7V with charged batteries to 1.8V at the end of life with a nominal voltage of 2.4V. When using alkalines, the output will range from 3.2V with new batteries to 2.2V at the end of life with a nominal voltage of about 3V.

The polarity matches that of Adafruit's 2-pin JST cable and Li-Ion/Poly batteries. Uses a genuine JST connector so it won't 'catch and tear' in JST connectors.

This is a great update to the battery packs that come with micro:bit's because it has an on-off switch built in so you don't have to yank it out to turn off the power.

Technical Details

Cable Length: 6" long, terminated with a genuine JST-PH 2 pin connector
Holder Dimensions: 62.5 x 25.3 x 15.4mm
