SMT Breakout PCB for SOIC-16 or TSSOP-16 - 3 Pack!

SKU: ADA1207

$6.95 AUD, inc GST
$6.32 AUD, exc GST

More Views

SMT Breakout PCB for SOIC-16 or TSSOP-16 - 3 Pack!
6.95 AUD

SKU: ADA1207

$6.95 AUD, inc GST
$6.32 AUD, exc GST
In stock, ships today if ordered before 2PM
Delivered by Thu, 28th of Sep
Shipping Offer

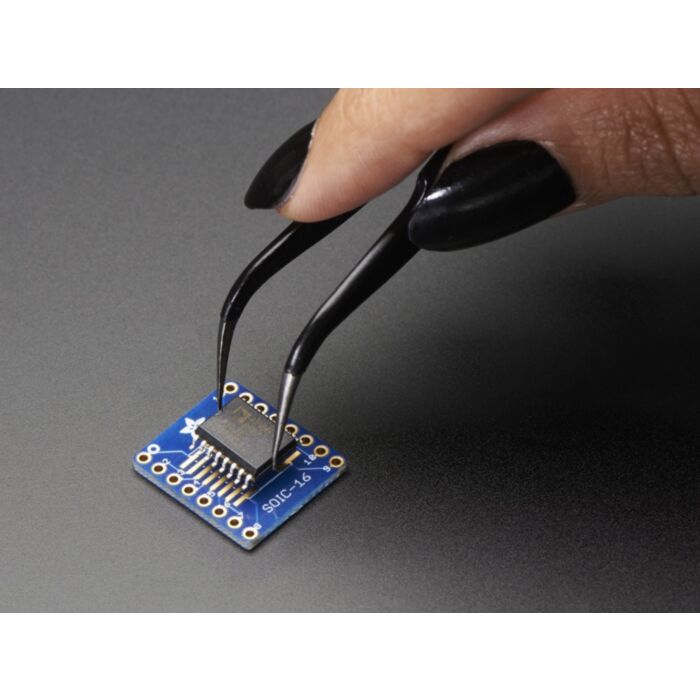

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 16-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 16-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip but the pin numbering wont be right so use care.

Technical Details
