SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!

SKU: ADA1208

$8.50 AUD, inc GST

More Views

SMT Breakout PCB for SOIC-28 or TSSOP-28 - 3 Pack!
8.5 AUD

SKU: ADA1208

$8.50 AUD, inc GST
2 reviews 0 5 4.5
109 units ship in 4 to 7 days (delivered by Wed, 7th of Jun)
Shipping Offer

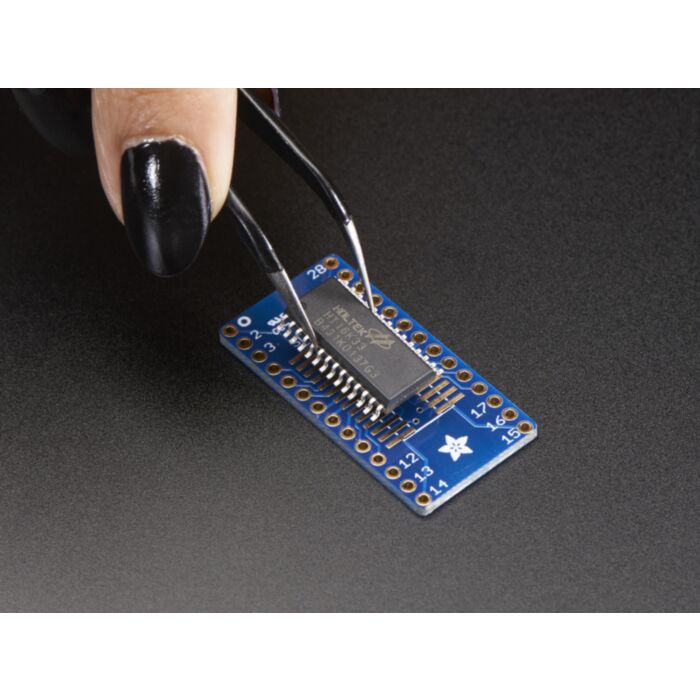

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 28-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 28-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip but the pin numbering wont be right so use care.

Technical Details

This product is listed in:

Documentation and Resources:

Product Comments

Customer Reviews

  1. Review by david - Great!

    I admit there's not much to these boards, but they are beautifully made and work a treat. It only gets a four star rating because it
    has a typo on the screen print ( 3 pin numbers are incorrect ) which is no big deal but shouldn't happen on a product so simple.
    This board has saved me lots of heartache. (Posted on 19/02/2014)

  2. Review by Manfred - Great product

    Very clean board made soldering easy even though I had never soldered SMDs before. (Posted on 15/02/2014)
