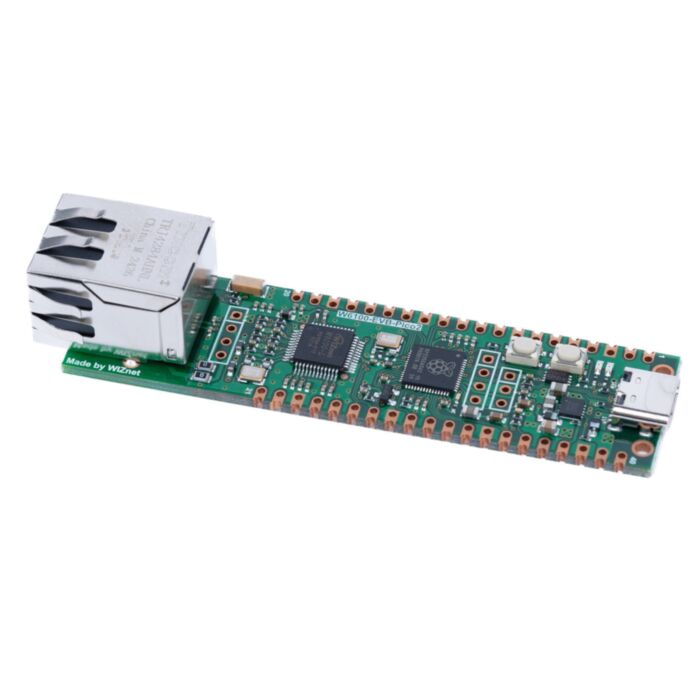

WIZnet Pico 2 Board with Ethernet & USB-C

SKU: TPH-106077 Brand: The Pi Hut

Explore the WIZnet Pico 2 Board, featuring Raspberry Pi RP2350 dual-core microcontroller, integrated Ethernet via W6100 TCP/IP controller, and USB-C connectivity - perfect for IoT and networking projects.

Special Price $18.71 AUD, inc GST

Regular Price $24.88 AUD, inc GST

$17.01 AUD, exc GST

Special pricing ends 21 February 2025

* this special may end earlier than shown

Out of Stock

The WIZnet W6100-EVB-Pico2 combines the powerful Raspberry Pi RP2350 microcontroller with integrated Ethernet connectivity through the W6100 TCP/IP controller. This development board delivers enhanced networking capabilities while maintaining compatibility with the Raspberry Pi Pico ecosystem, making it ideal for Internet of Things (IoT) projects, industrial automation, and networked sensor applications.

Key Features

RP2350 Microcontroller

Dual-core Arm Cortex-M33 processor running at up to 150MHz
520kB multi-bank SRAM for efficient data handling
16Mbit integrated Flash memory with XIP capabilities
Enhanced security features including TrustZone technology and secure boot

Networking Capabilities

W6100 TCP/IP controller supporting IPv4/IPv6
10/100 Mbps Ethernet with auto-negotiation
8 independent hardware sockets
32KB memory for TX/RX buffers
Optional PoE support via WIZPoE-P1 PoE add-on module

How to Use

The W6100-EVB-Pico2 utilises six GPIO pins (16-21) for SPI communication with the W6100 Ethernet controller. These pins are pre-configured and cannot be used for other purposes when using the Ethernet functionality.

Pin Configuration

GPIO Pin	Function
GPIO16	MISO
GPIO17	Chip Select (CSn)
GPIO18	Clock (SCLK)
GPIO19	MOSI
GPIO20	Reset (RSTn)
GPIO21	Interrupt (INTn)

Power Requirements

USB-C power input: 5V DC (±10%)
System voltage range: 4.3V to 5.5V
Operating temperature: -20°C to 85°C

What's in the Box

1x WIZnet W6100-EVB-Pico2 board

Compatibility

The board maintains pin compatibility with the Raspberry Pi Pico 2, except for the dedicated Ethernet communication pins. It can be powered using standard USB-C power supplies like the Raspberry Pi USB-C Power Supply.

Additional Resources

Product documentation
RP2350 datasheet
W6100 Datasheet
Schematic
Part list & Gerber File
CE/FCC Certification documents

About WIZnet

WIZnet specialises in Internet of Things (IoT) and networking solutions, providing hardwired TCP/IP embedded Ethernet controllers. Their products are renowned for reliable network connectivity and are widely used in industrial automation, smart home devices, and educational platforms. The W6100-EVB-Pico2 represents their commitment to combining networking capabilities with versatile microcontroller platforms.
