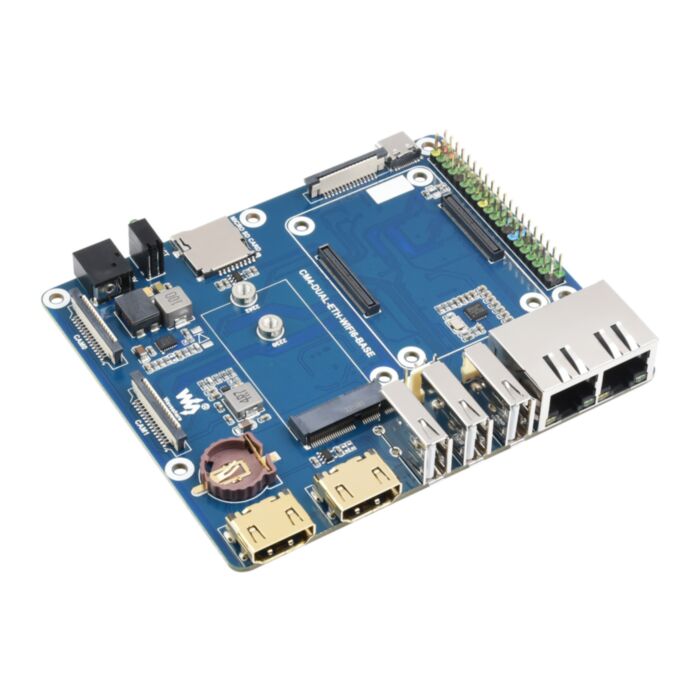

WIFI6 Dual ETH Mini-Computer Designed for Raspberry Pi CM4

SKU: WS-23589 Brand: Waveshare
WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot...
$74.75 AUD, inc GST
$67.95 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 22 and Nov 25

Quantity Discounts:

  • 6-12 $65.24 (exc GST)
  • 12+ $63.20 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot
WIFI6 Dual ETH Base Board for CM4

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

Powerful Ethernet Capability

Compatible With WIFI Module

Compatible with the following types of WIFI modules with M.2 A/E KEY interface

Wireless-AX210
WiFi 6E module

Wireless-AX200
WiFi 6 module

for reference only, AX210/200 WIFI module are NOT included.
Optional Black Metal Case

Support access to WIFI6 module, make it easy to build Raspberry
Pi CM4 mini PC with WIFI function

for reference only, CM4 and WIFI module are NOT included.
Specifications
CM4 socket suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1
USB USB 2.0 port × 3
PCIe M.2 E KEY
Pin header 40PIN GPIO header × 1
DSI display MIPI DSI display port × 1, 15pin 1.0mm FPC connector
CSI camera MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI HDMI × 2, support 4K 30fps output
RTC Real-time clock with battery socket and ability to wake Compute Module 4
TF card slot TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input 7V-36V
Dimensions 109.0 × 91.5mm
Selection guide
CM4 Base Board Interface count and specifications
PoE Gigabit
ETH
40PIN
GPIO
PCIe USB? DSI HDMI CSI RTC Fan
Header
Power
Input
Features

NANO A
  v   2.0×1     ×1   5V CM4 sized

NANO B
×1 v   2.0×1 ×1 ×1 ×1   5V CM4 sized

NANO C
v   2.0×1 ×1 ×1 ×1   5V Onboard Camera

mini Base A
×1 v M.2 M 2.0×4 ×1 ×2 ×2 5V 5V mini size

mini Base B
×1 v M.2 M 2.0×4 ×1 ×2 ×2 v 5V 5V mini size

mini Base C
×1 v M.2 M 2.0×2 ×1 ×2 v 5V 5V Dedicated 40PIN LCD Connector

Touch screen
×1   M.2 M 2.0×4   ×1 ×1     5V IPS screen

Mini Dual Gigabit
×2 v   2.0×1         5V SH1.0 5V dual ETH

Binocular camera
×1 v M.2 M 2.0×4   ×2       5V dual 8MP
cameras

4CH RS485
×1     2.0×2   ×1 ×2 ×1 5V 7-36V dual ETH

WIFI6 DUAL ETH
×1 v M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH

Dual Gigabit ETH
×2 v 3.0×3 ×1 ×2 ×2 v 5/12V 7-36V

IoT Dual Gigabit ETH
×2 v 3.0×2 ×1 ×2 ×2 v 5/12V 5V 5G/4G support

IoT Base
v ×1 Gen2×1 2.0×2 ×2 ×2 ×2 v 5/12V 7-36V 5G/4G support
RS232
RS485
ADC

PoE Base (B)
v ×1 v Gen2×1 2.0×4 ×2 ×2 ×2 v 5/12V 5V RS232
RS485

PoE UPS Base
v ×1 v M.2 M 2.0×4 ×1 ×2 ×2 v 5/12V 7-36V UPS

PoE Base
v ×1 v 3.0×4 ×2 ×2 ×2 v 5/12V 7-36V

Raspberry Pi official
? ×1 v Gen2×1 2.0×4 ×2 ×2 ×2 v 12V 12V

Wireless base
  ×1   M.2 B /
Mini-PCIe
2.0×3   ×1 ×1 v 5/12V 5V or
7-36V
5G/4G support
RS485
CAN
rail-mount

UPS Wireless base
  ×1   M.2 B 2.0×3   ×1 ×1 v 5/12V 5V or
7-36V
With UPS
5G/4G support
RS485
CAN
rail-mount

NAS Mini Computer
  ×2 v M.2 M×2/
Mini-PCIe
3.0×2   ×2 ×2 v   5V dual M.2 M KEY slots

5" touch screen
? ×1 v M.2 M 2.0×4   ×1 ×2 v 5/12V 5V

7" all-in-one
  ×1   M.2 M 2.0×4 used ×1 used v 5/12V
used
7-36V touch screen
camera
speaker

13.3" all-in-one
  ×1     2.0×2           12V HD touch screen

13.3" Magic Mirror
  ×1     2.0×2           12V HD screen,
Speech Assistant
Note ? USB 3.0 is equivalent to USB 3.2 Gen1
? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
Connecting with Compute Module 4

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 4 Lite/eMMC series module

* For reference only, CM4 and WIFI module are not included

Onboard M.2 E KEY Slot

Support access to WIFI module such as wireless NIC AX200, AX210, etc.

Parameters Comparison

Model
AX210

AX200
Wi-Fi VersionWi-Fi 6EWi-Fi 6
Wi-Fi Band2.4GHz5GHz6GHz2.4GHz5GHz
Wi-Fi Rate574Mbps2400Mbps2400Mbps574Mbps2400Mbps
InterfaceNGFF (M.2 A/E Key)
Bluetooth Version5.35.2
Technical SupportMU-MIMO
Antenna ConnectorIPEX-4 Connector
System SupportLinux, Windows 10/11
Dimensions22.0 × 30.0 × 2.4mm

Dual RJ45 Ethernet Connector

1-ch Gigabit Ethernet connector & 1-ch 100M Ethernet connector

Rich interfaces
Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation



Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

Application Examples

Suitable For Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

for reference only, display, cameras, and antenna are NOT included.

Product Show






Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Quick Overview

CM4-DUAL-ETH-WIFI6-BASE

  1. CM4-DUAL-ETH-WIFI6-BASE x1
1

CM4-DUAL-ETH-WIFI6-BOX

  1. CM4-DUAL-ETH-WIFI6-BASE x1
  2. Metal case (top and bottom) x1
  3. Fan-4010-PWM-5V x1
  4. OPTIONS12V 2A Power Supply x1
  5. Screwpack x1
