Waveshare Precision RTC Module for Raspberry Pi Pico (DS3231)

Rating:
100% of 100
SKU: WS-19426 Brand: Waveshare
The Pico-RTC-DS3231 is a RTC expansion module specialized for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231 and uses I2C bus for communication. More external sensors are allowed to be connected thanks to the stackable design.
$14.70 AUD, inc GST
$13.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $12.96 (exc GST)
  • 25+ $12.55 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Pico-RTC-DS3231 is a RTC expansion module specialised for Raspberry Pi Pico. It incorporates a high precision DS3231 RTC chip and uses I2C bus for communication. More external sensors are able to be connected thanks to the stackable design.

Specifications

  • Operating Voltage: 3.3v
  • Backup Battery Voltage: 2.3v ~ 5.5v
  • Operating Temperature: -40°c ~ +85°c
  • Power Consumption: 100na (Sustains Data And Clock Information)

Dimensions

Pinout

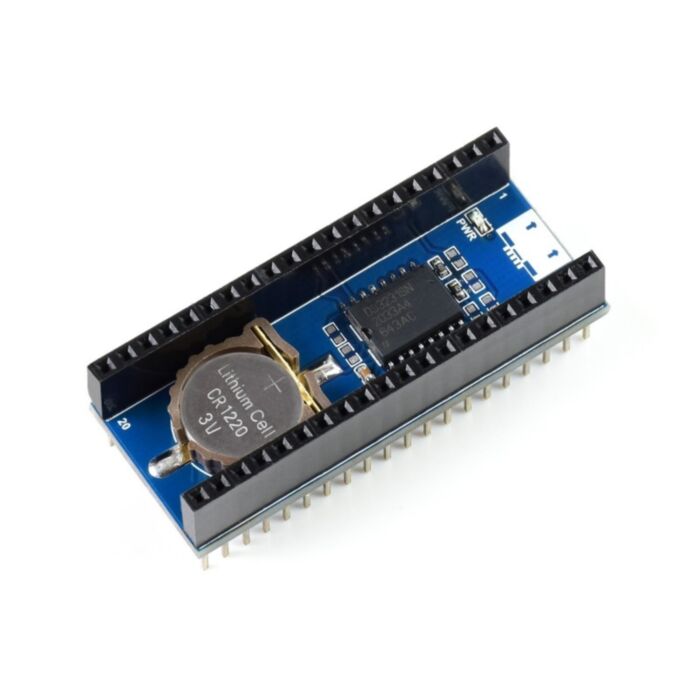

What's On Board

  1. DS3231: high precision RTC chip, I2C bus
  2. RTC backup battery: supports CR1220 button cell
  3. Power indicator: Enabled by soldering a 0O resistor on the jumper, disabled by default
  4. Raspberry Pi Pico header: For attaching to Raspberry Pi Pico, stackable design

Documents

This product is listed in:

Raspberry Pi>Pico>Accessories
