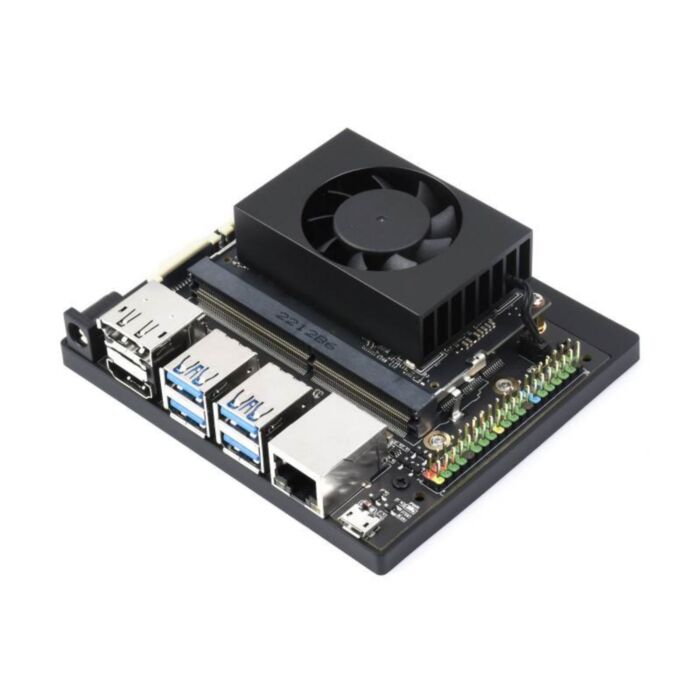

Waveshare Jetson TX2 NX Development Kit

SKU: WS-23037 Brand: Waveshare

NVIDIA Jetson TX2 NX delivers the next step in AI performance for entry-level embedded and edge products.

$709.95 AUD, inc GST

$645.41 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 05

Quantity Discounts:

3-5 $626.05 (exc GST)
5+ $613.14 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

NVIDIA Jetson TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides 2.5X the performance of Jetson Nano, integrating NVIDIA Pascal architecture with 256 NVIDIA CUDA cores and the AI performance reaches up to 1.33 TFLOPs.

This kit includes a TX2 NX Module with onboard 16GB eMMC, which does not support a Micro SD card.

Note: Does not include a Power Supply

Specifications

AI PERFORMANCE	1.33 TFLOPS
GPU	NVIDIA Pascal Architecture with 256 CUDA cores
CPU	Dual-core NVIDIA Denver 2 64-bit CPU and Quad-core Arm Cortex-A57 MPCore processor complex
MEMORY	4 GB 128 bit LPDDR4 51.2 GB/s
STORAGE	16 GB eMMC 5.1
POWER	7.5 W \| 15 W
PCIE	1x1 + 1x2 PCIe Gen2, total 30 GT/s
CSI	Up to 5 cameras (up to 12 via virtual channels) 12-Ch MIPI CSI-2 (3x4 or 5x2) D-PHY 1.2 (up to 30 Gbps)
VIDEO ENCODE	1x 4K60 \| 3x 4K30 \| 4x 1080p60 \| 8x 1080p30 (H.265) 1x 4K60 \| 3x 4K30 \| 7x 1080p60 \| 14x 1080p30 (H.264)
VIDEO DECODE	2x 4K60 \| 4x 4p30 \| 7x 1080p60 \| 14x 1080p30 (H.265 and H.264)
DISPLAY	2 Multimode DP 1.2/eDP 1.4/HDMI 2.0 1 x 2 DSI (1.5Gbps/lane)
NETWORKING	10/100/1000 BASE-T Ethernet
DIMENSIONS	69.6 mm x 45 mm 260-pin SO-DIMM connector

Dimensions

Resources

Wiki for Waveshare Jetson TX2 NX Development Kit
