NVIDIA Jetson Orin Nano Developer Kit

SKU: DEV-22098 Brand: Sparkfun

The NVIDIA® Jetson OrinTM Nano comprises of a Jetson Orin Nano 8GB module and a carrier board that can accommodate all Orin Nano and Orin NX modules...

$1,049.00 AUD, inc GST

$953.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

3-5 $487.62 (exc GST)
5+ $477.56 (exc GST)

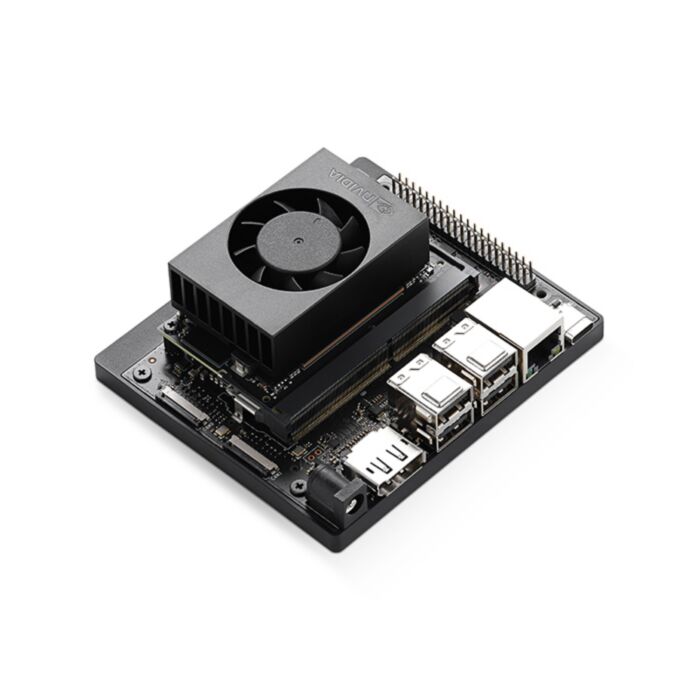

The NVIDIA® Jetson Orin^TM Nano Developer Kit sets a new standard for creating entry-level AI-powered robots, smart drones, and intelligent cameras,and simplifies getting started with the Jetson Orin Nano series. Compact design, lots of connectors and up to 40 TOPS of AI performance make this developer kit perfect for transforming your visionary concepts into reality. With up to 80X the performance of Jetson Nano, it can run all modern AI models, including transformer and advanced robotics models.

The developer kit comprises a Jetson Orin Nano 8GB module and a reference carrier board that can accommodate all Orin Nano and Orin NX modules, providing an ideal platform for prototyping your next-gen edge AI product. The Jetson Orin Nano 8GBmodule features an Ampere GPU and a 6-core ARM CPU, enabling multiple concurrentAI application pipelines and high-performance inference. The carrier board boasts a wide array of connectors, including two MIPI CSI connectors supporting camera modules with up to 4-lanes, allowing higher resolution and frame rate than before.

Jetson runs the NVIDIA AI software stack, with available use-case-specific application frameworks, including NVIDIA Isaac^TM for robotics, DeepStream for vision AI, and Riva for conversational AI. You can save significant time with NVIDIA Omniverse^TM Replicator for synthetic data generation (SDG), and with NVIDIA TAO Toolkit for fine-tuning pre-trained AI models from the NGC^TM catalog.

Ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.

Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and give you the flexibility to create the next generation of AIsolutions with the latest NVIDIA technology. Together with the world-standard NVIDIA AIsoftware stack and an ecosystem of services and products, your road to market has never been faster.

Includes

19V Power Supply (45W)
Type B (US, JP) Power Cable
Type I (CN) Power Cable
UPC Label
Quick Start and Support Guide

Features

Jetson Orin Nano 8GB Module
- GPU: NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
- Memory: 8GB 128-bit LPDDR5 68 GB/s
- Storage: external via microSD slot external NVMe via M.2 KeyM
- Power: 7W to 15W
Carrier Board
- Camera: 2x MIPI CSI-2 22-pin Camera Connectors
- M.2 Key M: x4 PCIe Gen 3
- M.2 Key M: x2 PCIe Gen3
- M.2 Key E: PCIe (x1), USB 2.0, UART, I2S, and I2C
- USB:
  - Type A: 4x USB 3.2 Gen2
  - Type C: 1x for UFP
- Networking: 1x Gbe Connector
- Display: DisplayPort 1.2 (+MST)
- microSD slot: UHS-1 cards up to SDR104 mode
- Peripherals:
  - 40-Pin Expansion Header (UART, SPI, I2S, I2C, GPIO)
  - 12-pin button header
  - 4-pin fan header
  - DC power jack
- Dimensions 100 mm x 79 mmx 21 mm (Height includes feet, carrier board, module, and thermal solution)
