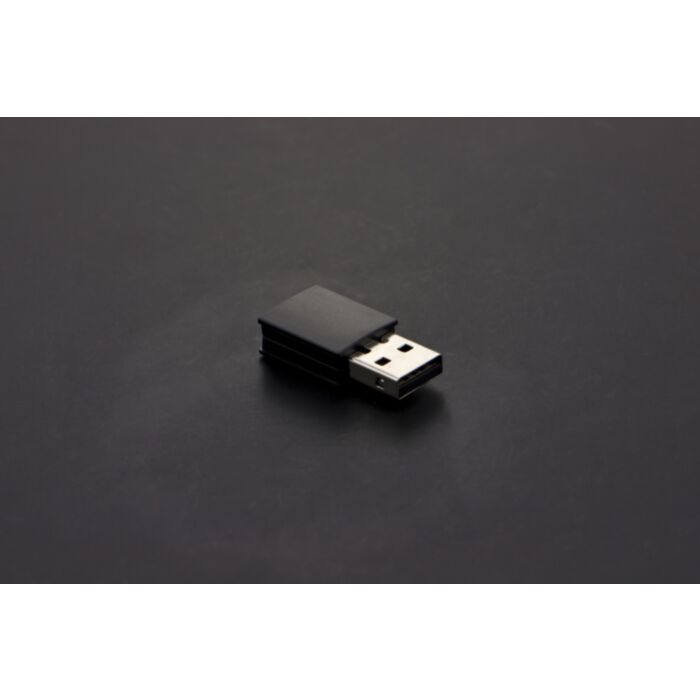

USB BLE-Link (Support Wireless Programming)

SKU: TEL0087

$14.63 AUD, inc GST
$13.30 AUD, exc GST

More Views

USB BLE-Link (Support Wireless Programming)
14.63 AUD

SKU: TEL0087

$14.63 AUD, inc GST
$13.30 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 784 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Oct with Express Post within Australia.

Introduction

Add bluetooth 4.0 to your PC, Mac directly with this USB BLE-Link. It uses the USB package which is compact and compatible with v2.1 and earlier, and also supports the latest v4.0/Bluetooth Low Energy. Now you could use this adapter to receive/transmit data.

With two USB-BLE Link users can do point-to-point wireless transparent transmission, master-slave machine setting, and wireless programming. It can also work as a PC BLE wireless programming adapter. Comaptible all DFRobot BLE series modules: i.e.BlunoRomeo BLE, etc

Specification

  • Bluetooth chip: TI CC2540
  • Frequency: 2.4GHz
  • Pin Layout: Compatible with Xbee pinout
  • Transfer rate: ≤1Mbps
  • Modulation: GFSK, bluetooth low power, V4.0
  • Sensitivity: -93dB
  • Input Voltage: +3.3 DC
  • Operating temperature: -10 ℃ ~ +85 ℃
  • Transmission distance: 5~15m in free space
  • Size: 32mm * 16mm
  • support AT command to debug the BLE
  • support master-salve switch
  • support transparent transmission serial port
  • support bluetooth remote update the Arduino program

Documents

 Parts List
  • USB BLE-LINK   1 unit

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to use an ESP8266 in the Arduino IDE
  • In August of 2014 Shanghai-based chip manufacturer, Espressif, released a ultra-cheap Serial to Wi-Fi chip called the ESP-01. At the heart of the ESP01 was an ESP8266 chip broken out into the 8 pins needed to program it via a microcontroller. You cou...
  • How to Use HC-05 Bluetooth Modules
  • So we’ve taken a look at what Bluetooth is in our Introduction to Bluetooth tutorial, and hopefully, you’ve found our Choosing a Bluetooth Module For Your Project tutorial useful in deciding which Bluetooth module is right for your p...
  • How to Choose a Bluetooth Module For Your Project
  • Alright, so we know that Bluetooth is awesome, and if you don’t, take a read of our Introduction to Bluetooth tutorial. But how exactly do we go about implementing Bluetooth communication in our projects? Well, fortunately for us, there are Blu...
  • Introduction to Bluetooth
  • Nowadays, everything is going wireless. Phones, computers, game controllers, consoles, everything! Wireless technology has allowed us to use electronic devices with an untethered freedom which just isn’t possible with clunky cables hanging of...

Product Comments


Customer Reviews

  1. Review by Mark verified purchaser
    Rating
    100

    Once setup you can forget having to plug in your board to reprogram. The setup was the only tricky part but if you carefully ready the online manual and follow it exactly you should have no issues. Used in conjunction with a ROMEO BLE board. (Posted on 5/12/2016)
