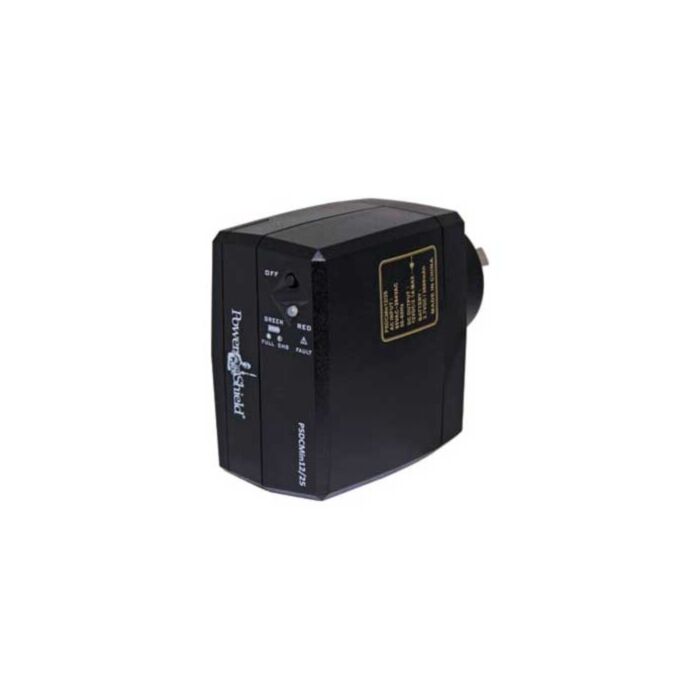

Uninterruptible Power Supply 12V DC 18W

This compact plugpack style 12V DC NBN UPS (uninterruptible power supply) is fitted with an internal lithium-ion battery pack for keeping devices powered up during a power outage. Appliances may then be shutdown safely, protecting from data loss, corruption or damage. 12V DC output with 8 DC jack tips to suit a wide range of appliances. Ideal size for small phone systems, POS, tills, routers, NAS devices etc. Size: 68Dx42Wx74Hmm.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Features

• Built in replaceable Li-ion battery
• Auto start when plugged in
• Embedded Micro-controller
• Manual power off switch port
• Overload, short-circuit, over-charge & over-discharge protection
• NBN molex connector

Specifications

AC Input

• Voltage Range: 90 VAC ~ 265 VAC
• Frequency: 50Hz or 60Hz
• Surge Protection: 125 J @ 4500 A

DC Input

• Voltage: 12V DC ± 5%
• Maximum Power: 18W (1.5 A)

Battery

• Battery Type: Lithium-ion Battery / 3.7V DC / 2600 mAh
• Typical Charging Time: 3 hours recover to 90% capacity

Protection

• Battery: Deep discharge, over-charge and short circuit protection
• Input/Output: Fuse for short circuit and overload protection

Indicators

• Multi-colour LED Display
• Full Battery: Green - Solid
• Battery Charging: Green - Slow Flashing
• Battery Discharging: Green - Quick Flashing
• Fault: Red - Solid

Physical

• Dimensions: 78D x 42W x 74H mm
• Weight: 280g

Downloads

• Brochure
• Instructions
