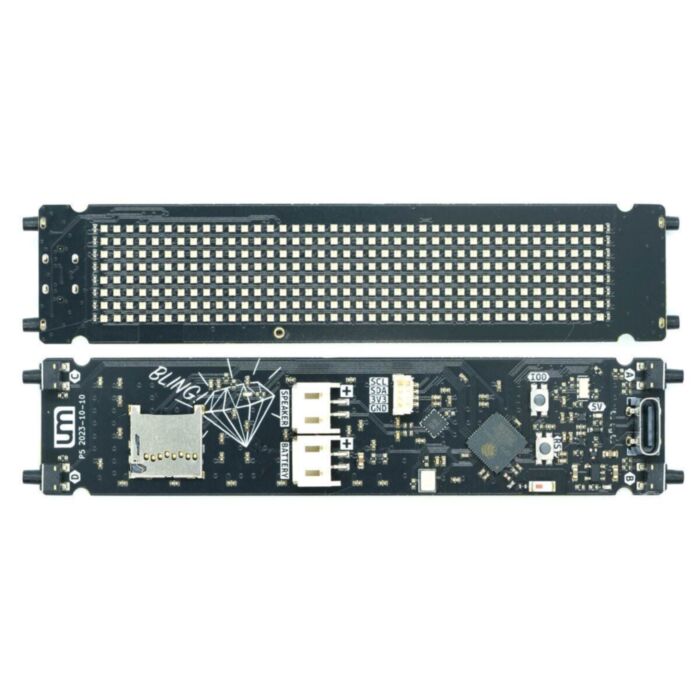

Compact dev board with 40x8 RGB LED matrix and an ESP32-S3 Wi-Fi/Bluetooth MCU onboard, I2S audio, battery charging, user-programmable power, and four buttons.
Out of Stock
Sign up to get notified when it's available to order.
Meet Hello BLING, the feature-packed BLING that pairs a dense 40x8 RGB LED matrix with an ESP32-S3 for fast, creative builds. Turn ideas into eye-catching results, from an RGB clock with custom alarm sounds to a portable web radio or an audio-reactive level display.
With USB-C power and battery charging, four user programmable buttons, onboard audio I/O, removable storage, and a compact 99 x 22 mm footprint, Hello BLING is ready to prototype, demo, and deploy.
| MCU | ESP32-S3, dual-core 32-bit up to 240 MHz, RISC-V ultra low power core |
| Memory | 8 MB QSPI Flash, 2 MB extra QSPI PSRAM |
| Wireless | 2.4 GHz WiFi 802.11 b/g/n; Bluetooth 5, BLE + Mesh |
| LED matrix | 40 x 8 RGB, 1 x 1 mm addressable LEDs; user programmable matrix power switch |
| User input | 4 user programmable buttons |
| Audio | I2S MEMS microphone, I2S audio amplifier, JST speaker connector |
| Storage | microSD card slot |
| Expansion | STEMMA/QT connector |
| Power | USB-C connector with ESD protection; battery charging; reverse USB back-feed protection; 700 mA 3.3 V LDO regulator; JST battery connector |
| Timing | Low power RTC |
| Mechanical | 99 x 22 mm board; 2.5 mm half cut mounting holes for M2.5 screws |
