Tamiya 75026 Mini Motor Set

SKU: POLOLU-1688 Brand: Pololu

The Tamiya 75026 Mini Motor Set is a more powerful brushed DC motor for the Tamiya Mini Motor Gearboxes.

$7.40 AUD, inc GST

$6.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $6.45 (exc GST)
25+ $6.25 (exc GST)

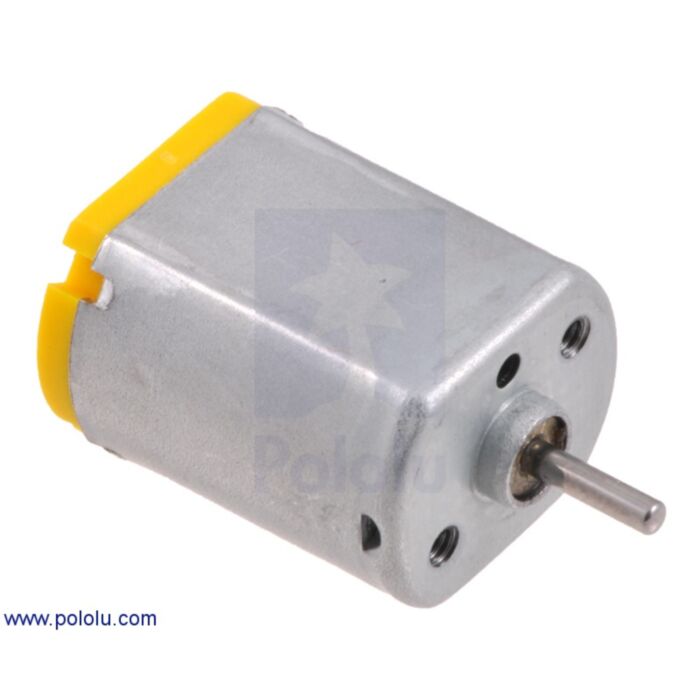

Tamiya 75026 Mini Motor Set with included parts.

This 030-size motor can replace the brushed DC motor included with the Tamiya Mini Motor 4-speed, 8-speed, and 12-speed gearboxes and has 20% more power than the motor included with those gearboxes.

The Tamiya 75026 Mini Motor set includes:

One motor
One 8 toothed 0.5M pinion gear
Vinyl tubing
Double sided tape

This motor is intended for operation around 3 V.

People often buy this product together with:

Tamiya 70103 Universal Gearbox Kit

Solarbotics RM2 (high-power motor for GM2/3/8/9)

Brushed DC Motor: 130-Size, 6V, 11.5kRPM, 800mA Stall

Dimensions

Size:	19 x 16 x 12 mm¹
Weight:	0.39 oz²

General specifications

No-load speed @ 3V:	10500 rpm
No-load current @ 3V:	100 mA
Stall current @ 3V:	1.1 A
Stall torque @ 3V:	0.3 oz·in

Notes:

1: Not including the shaft.
2: Without included hardware.
