Stereo Bluetooth Amplifier Board

Rating:
100% of 100
SKU: DFR0675-EN Brand: DFRobot Guides (1)
This is a small size and cost-effective Bluetooth 5.0 digital amplifier module with a volume adjustment function. It can connect to two speakers and match a wide...
$15.30 AUD, inc GST
$13.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

  • 10-25 $13.49 (exc GST)
  • 25+ $13.22 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

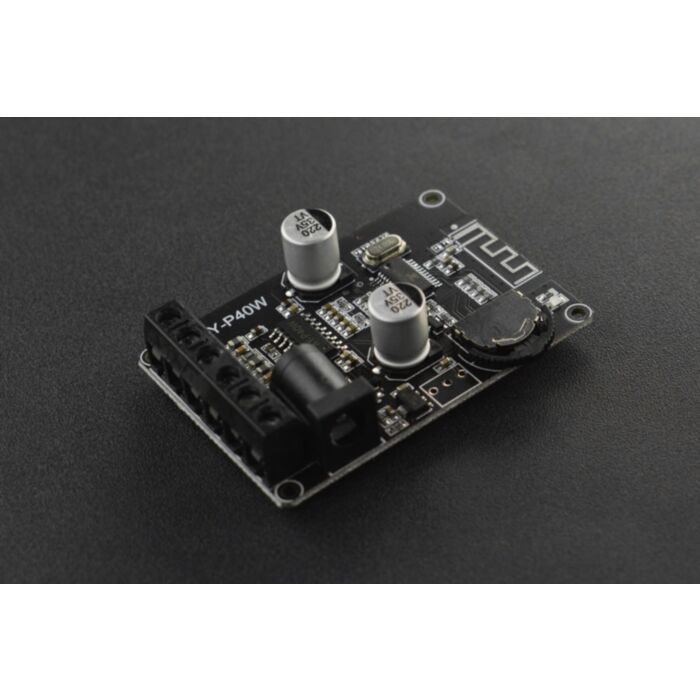

This is a small size and cost-effective Bluetooth 5.0 digital amplifier module with a volume adjustment function. It can connect to two speakers and match a wide variety of high-power speakers (40W-200W). This board can be used as a small Bluetooth speaker when connected to Raspberry Pi or a mobile phone, offering you excellent two-channel stereo sound effects. In addition, the board comes with power supply reverse connection protection, short circuit protection, and so on.

Operating Instructions

After the power is turned on, the blue indicator flashes quickly, and then it enters the Bluetooth mode; After playing the Beep, it goes into the pairing mode, waiting for pairing; Turn on the Bluetooth of a phone or Raspberry Pi, "XY-P40W" (module Bluetooth name) will be searched and displayed, click "XY-P40W" to connect to the board. It connects successfully with a Beep. When the indicator is always on, you can play your music on the phone, the indicator keeps slowly blinking when playing music.

  1. Keep the amplifier board as far away as possible from the WIFI signal (router).
  2. 5-24VDC is recommended; upper than 26V, the chip will be burnt.
  3. Input voltage can not exceed 16V when connecting to 4Ω speakers, and not exceed 24V when connecting to 8Ω speakers.
  4. Recommended power supply current 2A at least.
  5. The speaker wire should be within 1m.
  6. Pay attention to electrostatic protection. Since the Bluetooth chip is very sensitive to static electricity, you must discharge the static electricity on your hand to avoid the static electricity from puncturing the chip when touching the board.
  7. It is recommended to use a speaker above 40W to avoid speaker damage.
  8. When the module’s power supply voltage is relatively low but the output power is relatively large, noise may be produced. You can reduce the volume or increase the power supply voltage to solve it.

Specifications

  • Voltage: 5-24V
  • Bluetooth 5.0
  • Transmission Distance: 15m (Line of Sight)
  • Sound Channel: two channels (stereo)
  • Output Power(@1KHz): 20W*2 @12V 4Ω
  • 30W*2 @16V 4Ω
  • 30W*2 @21V 8Ω
  • 40W*2 @24V 8Ω
  • Match Speaker: 4Ω(5~16V), 8Ω(5~24V)

Shipping List

  • Stereo Bluetooth Amplifier Board x1
  • Acrylic Shell x1
  • Accessories Packet x1
