SparkFun Rotary Switch Potentiometer Breakout

SKU: BOB-13099 Brand: Sparkfun

The SparkFun Rotary Switch Potentiometer Breakout is a small board the allows you to add resistors to a 10-position rotary switch, turning it into a potentiometer with 10 discrete steps. Multiple applications require potentiometers that are hard to find due to specific resistance values or custom tapers, the Rotary Switch Potentiometer board allows you to populate your own resistors to help match situations where ordinary parts aren’t available or suitable. Specific resistors can also be used in situations where you want distinct steps or selections, such as being able to consistently select to a value.

$6.30 AUD, inc GST

$5.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $5.55 (exc GST)
25+ $5.44 (exc GST)

Recommended Essentials:

Rotary Switch - 10 Position

$5.75

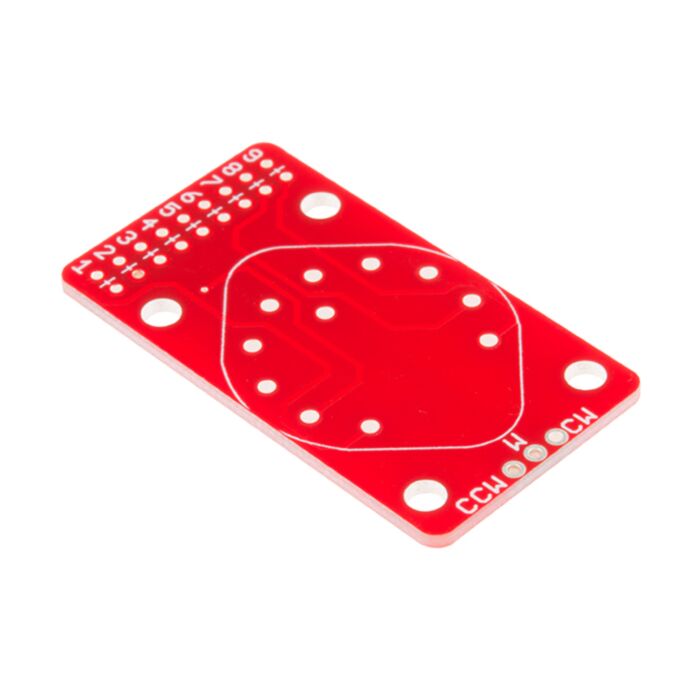

Each Rotary Switch Potentiometer Breakout provides you with nine spots on the board for resistors (positions 1 through 9). These resistors are bent like a hair pin, and soldered in place “standing up.” On the opposite side of the breakout you will find three pins to attach leads or a connector which include, CCW (Counterclockwise end of resistor string), W (Wiper), and CW (Clockwise end of resistor string).

Note: A 10-position rotary switch is NOT included with this breakout. Check the Recommended Products section below for the correct switch.

Documents:

Schematic
Eagle Files
Hookup Guide
GitHub (Example Code & Design Files)
Product Video
