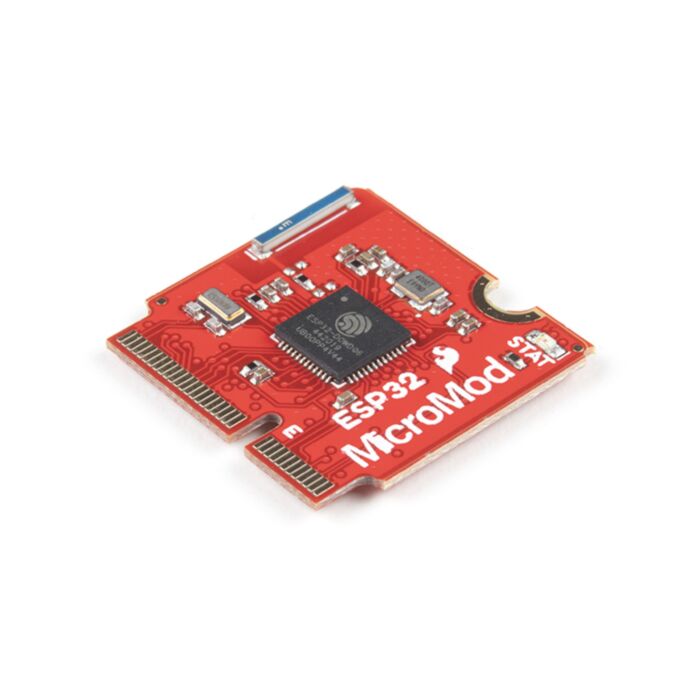

SparkFun MicroMod ESP32 Processor

SKU: WRL-16781 Brand: Sparkfun

The MicroMod ESP32 Processor Board combines Espressif's ESP32 with our M.2 connector interface to bring a processor board with reliable WiFi capabilities...

$31.30 AUD, inc GST

$28.45 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 27 and Jan 30

Quantity Discounts:

10-25 $27.60 (exc GST)
25+ $27.04 (exc GST)

The MicroMod ESP32 Processor Board combines Espressif's ESP32 with our M.2 connector interface to bring a processor board with reliable WiFi capabilities into our MicroMod ecosystem. With the M.2 MicroMod connector, connecting your ESP32 Processor is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). If you need to swap out your processor for a strong wireless option, make sure to check out the MicroMod ESP32!

The ESP32 includes a laundry list of functionality, including the dual-core Tensilica LX6 microprocessor, 240MHz clock frequency, 520kB internal SRAM, integrated WiFi transceiver and hardware accelerated encryption (AES, SHA2, ECC, RSA-4096). With this MicroMod processor board, you have access to 8 general use IO pins, dedicated analog, digital, and PWM pins, as well as all the fan favorites - SPI, I²C, UART, and SDIO. Add to that 16MB flash storage and sleep current of around 500µA, and you've got a perfect storm of versatility.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Get Started with the MicroMod ESP32 Processor Hookup Guide

Features

ESP32 General Features:

Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
128mbit/16MB flash storage
Integrated 802.11 BGN WiFi transceiver
2.7 to 3.6V operating range
500µA sleep current under hibernation
10-electrode capacitive touch support
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

Specific Peripherals made available on MicroMod ESP32:

1x USB dedicated for programming and debug
1x UART
2x I²C
1x SPI
7x GPIO
2x Digital Pins
2x Analog Pins
2x PWM
Status LED
VIN Level ADC

Additional peripherals are available but are shared on dedicated MicroMod pins.

Documents

MicroMod ESP32 Processor Documentation:

MicroMod Documentation:

SparkFun MicroMod Interface v1.0 - Pinout
SparkFun MicroMod Interface v1.0 - Pin Descriptions
Getting Started with MicroMod
Designing with MicroMod
MicroMod Info Page
MicroMod Forums
SparkFun Eagle Libraries contains example footprints for the M.2 connector and SMD standoff
M.2 MicroMod Connector Datasheet
MicroMod Reflowable Standoff Datasheet

ESP32 Documentation:
