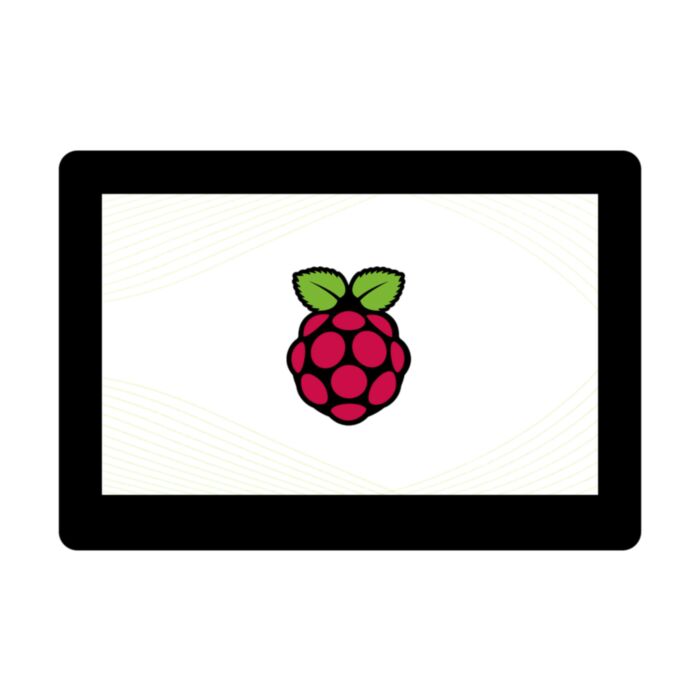

5 Inch Low-Power DSI IPS Touch Display for Raspberry Pi (800×480 Pixels)

Rating:
100% of 100
SKU: WS-21973 Brand: Waveshare
5inch Capacitive IPS Touch Display For Raspberry Pi, 800×480, DSI Interface, Low Power Consumption...
$70.20 AUD, inc GST
$63.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 6-12 $61.26 (exc GST)
  • 12+ $59.35 (exc GST)
- +

9 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

5inch Capacitive IPS Touch Display for Raspberry Pi, 800×480 pixels using the DSI Interface

Features:

  • 5inch TFT screen. 800x480 hardware resolution
  • Capacitive touch panel, supports 5-point touch via I2C
  • Tempered glass capacitive touch panel, hardness up to 6H
  • Supports Pi 5B(with adapter cable)/4B/3B+/3A+/3B/2B/B+/A+.
  • DSI interface, refresh rate up to 60Hz.
  • Supports software control of backlight brightness
  • With 5V power, the working current of the 5-inch DSI LCD is about 250mA (brightest) and 100mA (darkest).
  • Raspberry Pi OS, 5-points touch, driver free
  • Supports Ubuntu / Kali / WIN10 IoT, single-point touch

Dimensions

Resources

Manufacturer's product Wiki

Shipping List

  • 1x 5inch DSI LCD (B)
  • 1x FPC 15PIN 1.0 pitch 50mm (opposite sides)
  • 1x Screws pack
