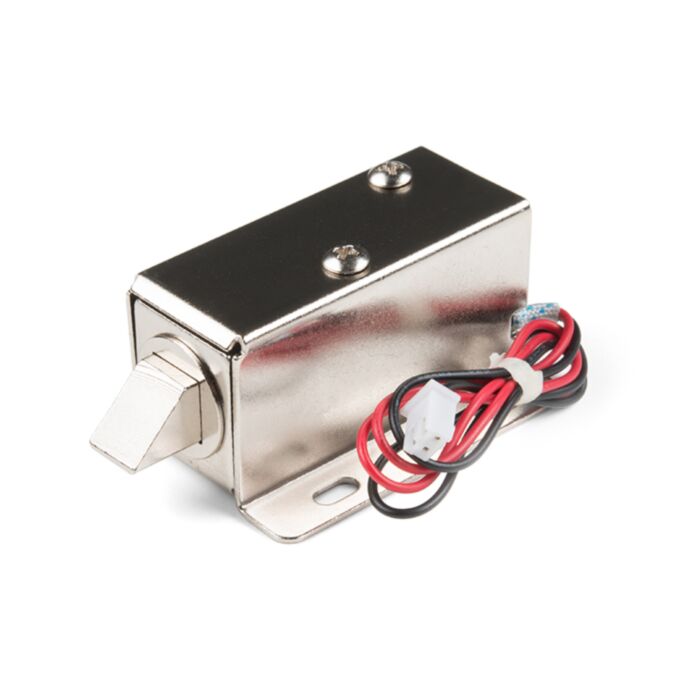

Solenoid - 12V (Latch / Lock)

Rating:
100% of 100
SKU: ROB-15324 Brand: Sparkfun Guides (1)
Does controlling door and cabinet access with the power of Electromagnetism interest you? Excellent! In effect, this latch / lock solenoid is an electronic lock...
$22.40 AUD, inc GST
$20.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 01st of Jul

Quantity Discounts:

  • 10-25 $19.75 (exc GST)
  • 25+ $19.35 (exc GST)
- +

7 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Does controlling door and cabinet access with the power of Electromagnetism interest you? Excellent! In effect, this latch / lock solenoid is an electronic lock. When powered with 12VDC source, the latch is pulled in, allowing movement. Without power, the latch is extended, blocking movement and your secret drawer is safe and secure.

This Solenoid Latch comes with a mounting bracket which can be removed with two screws. Once removed the solenoid can be rotated 180 and remounted. Paired with a relay you can easily have a low voltage system control this and other higher voltage devices.

Features

  • Draws 600mA at 12V
  • Designed for 1-10 seconds long activation time
  • Dimensions: 41.5mm / 1.63" x 54.5mm / 2.15" x 30mm / 1.18"
  • Lock pin extends 10mm
  • Wire length: 250mm / 9.84" Terminates in a 2-pin male JST connector.
  • Weight: 0.16kg
