Magnetic Switch

Rating:

100% of 100

SKU: SEN0387 Brand: DFRobot

The magnetic switch mainly comprises two parts---the inducting end and trigger. The former has a reed switch enclosed inside and there is a cable connected to it...

$8.50 AUD, inc GST

$7.73 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 17

Quantity Discounts:

10-25 $7.49 (exc GST)
25+ $7.34 (exc GST)

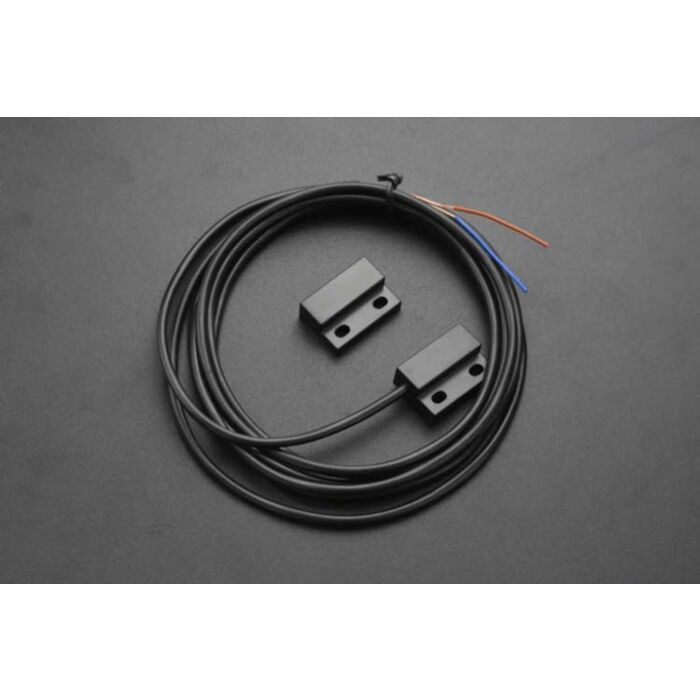

The magnetic switch mainly comprises two parts; the inducting end, and the trigger. The former has a reed switch enclosed inside and there is a cable connected to it, and the latter is a magnet enclosed within a plastic case. When the two parts are separated the circuit will be open. When the distance between these two parts is smaller than 1cm, the reed switch will close and a connection will be made. Characterized with reliable performance, long life-span, low power consumption, wide voltage range, and high operating frequency, this magnetic switch is very applicable to harsh environments and can be used in door/window position limiting device, intelligent toilet, car/electrical bike anti-theft, smart home, etc.

Specification:

Dimension: 6*14*23mm
Output Mode: NO (with magnet separated)
Power Voltage: 0~380VDC/AC
Contact Rating: 1W
Load Current: =50mA
Operating Temperature: -10~70°C
Operating Humidity: 25~95%
Switching Frequency: 200Hz
Withstand Voltage: 1000V/AC 50/60HZ 60S
Insulation Resistance: =50MO(500VDC)
Withstand Vibration: 50HZ
Protection Grade: IP67
Enclosure Material: PBT/ABS

Shipping List:

Magnetic Switch x1
Magnet x1

This product is listed in:

Components & Parts>Switches>Other
