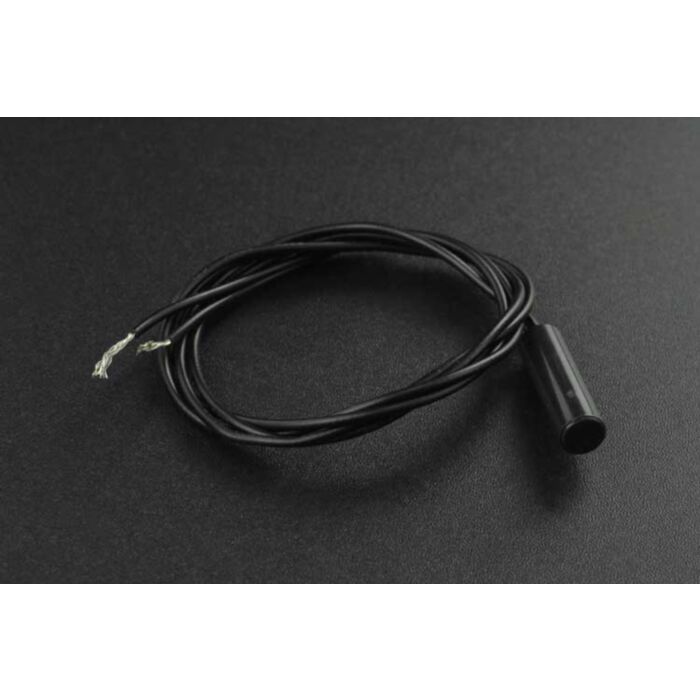

Magnetic Contact Switch Sensor for Arduino

SKU: SEN0481 Brand: DFRobot

This magnetic switch (reed switch) consists of two magnetic reeds (usually composed of iron and nickel) sealed in a plastic case. The two magnetic reeds are overlapped...

$6.50 AUD, inc GST

$5.91 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 25

Quantity Discounts:

10-25 $5.67 (exc GST)
25+ $5.49 (exc GST)

Introduction

This magnetic switch (reed switch) consists of two magnetic reeds (usually composed of iron and nickel) sealed in a plastic case. The two magnetic reeds are overlapped but there is a small gap between them. When a suitable external magnetic field comes within 2cm, the two magnetic reeds will contact and conduct, thereby sensing the change in the position of the object.

This magnetic control switch has a compact structure and a small weight, which can be installed in a limited space, and is extremely suitable for using in miniaturized equipment. The switching elements of the reed switch are hermetically sealed in an inert gas atmosphere so that they are never exposed to the external environment and feature a long service life. The switch can be widely used in door/window position limiting device, proximity switches, measuring instruments, automation/security/transportation equipment, smart homes, etc.

Features

Compact structure and small weight
Long service life
Wide voltage operating range

Specification

Operating Voltage: 0~100V
Operating Principle: magnetic sensor
Output Signal: switching value signal
Size: 6x20x350mm/0.24*0.79*13.78”
Color: black

Documents

Product wiki

Shipping List

Magnetic Switch x1
Sensor Adapter x1
Sensor Data Cable x1
