Small Inductive Coil and 10 Wireless LED Kit - 5V

Rating:
100% of 100
SKU: ADA5140 Brand: Adafruit
Adding LEDs to anything makes it 5x better -- it's a scientific fact! But when you have LEDs, you've got wires and power supplies and all that...
$32.25 AUD, inc GST
$29.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $28.15 (exc GST)
  • 25+ $27.26 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Adding LEDs to anything makes it 5x better -- it's a scientific fact! But when you have LEDs, you've got wires and power supplies and all that stuff is kinda annoying. What if you could have LEDs that light up without any wires or soldering or battery packs? Sounds magical! That's what makes this Small Inductive Coil and 10 Wireless LED Kit so nifty. It uses electromagnetic fields and inductive coupling to pass power through the air to light up lil LEDs soldered onto coils.

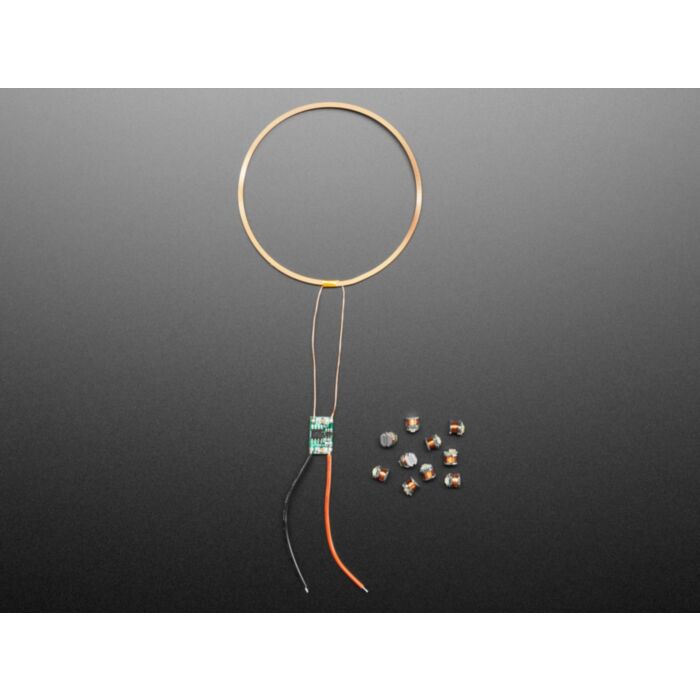

Each order comes with one driver board (you'll need a 5V power supply to power it) and ten miniature LED inductors in an assortment of colors (two each of white, blue, yellow, green, and red)

Inductive charging is a way of powering a device without a direct wire connection. Most people have seen inductive charging in a rechargeable electric toothbrush: you may have noticed that you recharge it by placing it into the holder, but there's no direct plug. These chargers work by taking a power transformer and splitting it in half, an AC waveform is generated into one, and couples into the second coil.

In this product, Adafruit have one small coil that forms the 'primary' of the power charger. Then, each individual LED has a smaller coil on the back. When the two couple, power is transferred from coil to LED and it lights up. You can have a large number of LEDs, all in different 3D space above or below the coil. You can also have them in different orientations, although you will get the best efficiency/power transfer when the two coils line up. You can also have the LEDs slightly outside the main ring, but, again, they'll not light up as bright as if they're right in the center.

These are often used for model makers, toy designs, or displays but we think there's a lot of potential here for art or craft or cosplay. The coil fairly small so you get about 1-3" of vertical space to work within.

These are basic modules, and Adafruit don't have any datasheets or specifications for them. We bench-tested this coil to draw 5V @ 0.06A so you can use these ever-handy 2.1mm DC Barrel Jack to Alligator Clips to connect the red and black wires to your 5V power supply



Technical Details

  • Voltage: 5V (draws ~60mA)
  • Sensing distance: 0 - 80mm
  • Module size: 16mm x 12mm x 2.5mm
  • Coil outer diameter: 70mm, inner diameter: 65mm, thickness: 0.5mm



Included items

  • 1x 5V inductive coil
  • 10x Wireless LEDs
