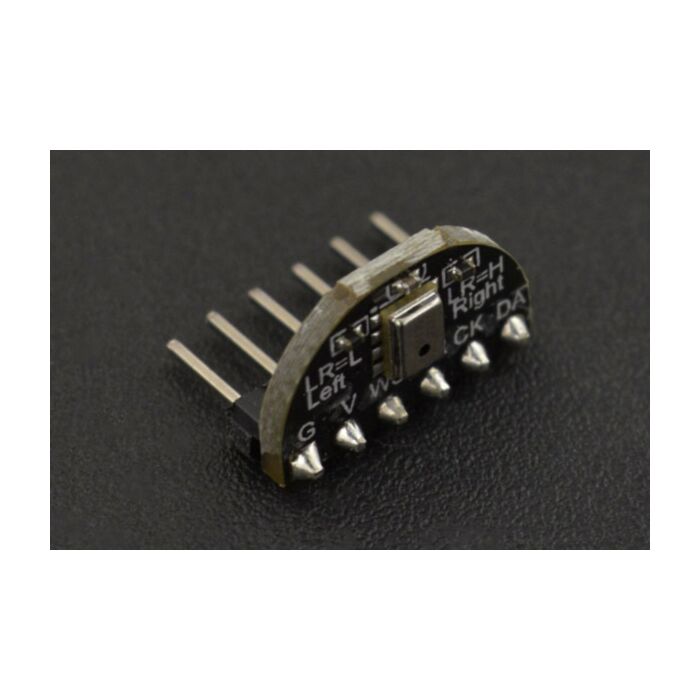

I2S Microphone Module

Rating:
100% of 100
SKU: SEN0327 Brand: DFRobot
This high sensitivity single microphone module features MSM261S4030H0 digital silicon chip, I2S output, onboard SK9822 series RGB LED, two-wire control color. MSM26S4030H0...
$6.75 AUD, inc GST
$6.14 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 25 and Nov 30

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A compact, low-power digital microphone module built around the MSM261S4030H0 MEMS microphone. It outputs 24-bit audio over I2S and includes an onboard SK9822 RGB LED you can control with two wires (clock and data).

A traditional analog microphone needs a separate audio codec (ADC) to turn its signal into digital data before a microcontroller can use it. The MSM261S4030H0 has the ADC, filtering and power management built in, so it sends digital audio straight to your MCU or DSP. You don't need a codec, so the design is simpler, smaller and less prone to noise.

The microphone is omnidirectional and bottom-ported, with a flat response across the speech range. That makes it well suited to near-field uses like voice recognition and audio capture. It pairs well with Sipeed MAIX boards.

Specifications

  • Microphone: MSM261S4030H0 MEMS (omnidirectional, bottom port)
  • Output: 24-bit digital I2S
  • Supply voltage: 1.8V to 3.3V
  • Current draw: 1.4mA
  • Sensitivity: -26 dBFS
  • Signal-to-noise ratio: 61 dBA
  • Frequency response: 60Hz to 15kHz
  • Power supply rejection: -75 dBFS
  • Onboard LED: SK9822 RGB (2-wire control)

Pinout

  • SCK: I2S serial clock
  • WS: I2S word select
  • L/R: Channel select (low = left, high = right)
  • SD: I2S serial data output
  • VCC: 1.8V to 3.3V
  • GND: Ground

Documents

Parts List

  • 1 × I2S microphone module
