SLogic Combo 8 Multi-function Development Tool

SKU: FIT0956 Brand: DFRobot

SLogic Combo 8 is a multi-function development tool integrating a logic analyzer, CKLink, DAP-Link debugger, and UART module. It offers a maximum sampling...

$25.70 AUD, inc GST

$23.36 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $22.66 (exc GST)
25+ $22.20 (exc GST)

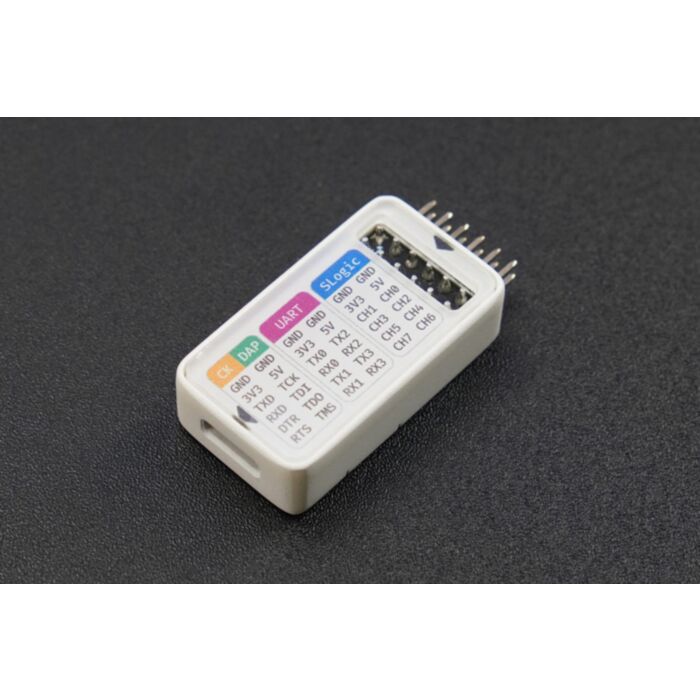

The SLogic Combo 8 is a versatile development tool that integrates the functionalities of a logic analyzer, CKLink debugger, DAP-Link debugger, and UART module (USB2UART). It allows for arbitrary switching between these functions via buttons. This 4-in-1 tool offers a maximum sampling rate of 80 MHz, supports up to 8 channels, and is compatible with multiple platforms. Despite its compact form factor, it provides a wide range of over 130 analysis protocols.

As a logic analyzer, it offers a maximum sampling frequency of 80 MHz, enabling the analysis of a broad range of protocols in conjunction with a host computer. When used as a UART module, it supports up to 4 serial ports with a maximum baud rate of 20 Mbps, making it suitable for various applications that rely on serial communication. As a CKLink or DAPLink, it aids in debugging RISC-V and ARM-based chips, with an additional serial port available for log observation.

Powerful 4-in-1 Debugger

Powerful 4-in-1 Debugger of SLogic Combo 8

Powerful Features

SLogic Combo 8 Powerful Features

Support for analysing 130+ protocols

SLogic Combo 8 Support for analysing 130+ protocols

Function Annotation

Function Annotation of Slogic Analyzer DAPLink CKLink Debugger Tool

Panel Information

Panel Information of Slogic Analyzer DAPLink CKLink Debugger Tool

Applications

Protocol Analysis
Serial Communication
Chip Debugging
Education and Training
Hardware Development and Testing
Research and Development

Specification

SLogic Function Parameters

Maximum Channel Number: 8CH
Maximum Sampling Rate: 80M
Transmission Bandwidth: 320Mb/s
Sampling Mode: Stream
Typical Configuration: 80M@4CH 40M@8CH
Signal Input Range: 0~3.6V
High and Low Level Thresholds: VIN>2V VIL<0.8V

In Windows environment, the SLogic Combo 8 has maximum transmission bandwidth of 160 Mb/s. The typical configuration includes 80M@2CH and 40M@4CH.

CKLink Function Parameters

JTAG Clock Rate: 16M
Typical Dump Speed: 1200KB/s
Debug Serial Port: Up to 20Mbps

DAPLink Function Parameters

Debug Serial Port: Up to 20Mbps
Typical Burning Speed: 110KB/s

UART Function Parameters

Maximum Baud Rate: 2×20Mbps+2×1Mbps
Total Bandwidth: 42Mbps

Documents

Parts List

Slogic Analyzer/ DAPLink /CKLink Debugger /UART Tool ×1
Chip clip ×10
USB Type-Cp ×1
Female-to-female DuPont wirep ×1
