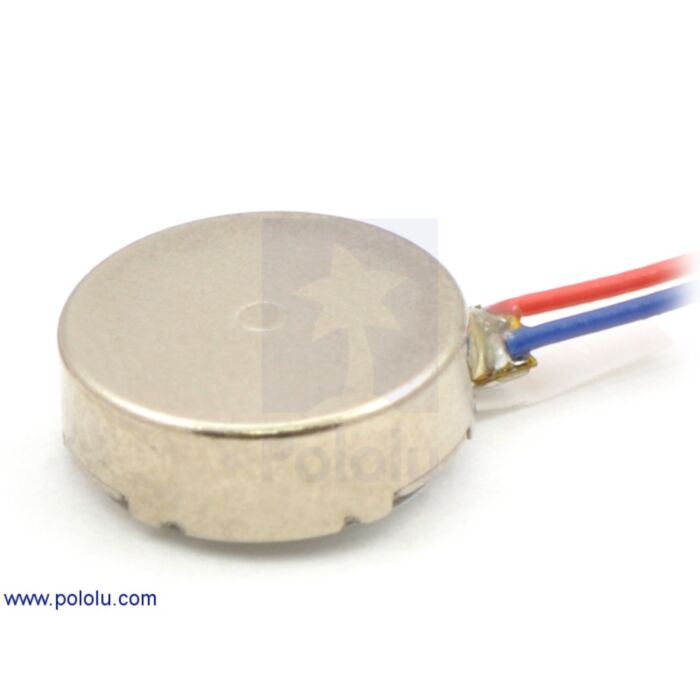

Shaftless Vibration Motor 10x3.4mm

Rating:
100% of 100
SKU: POLOLU-1636 Brand: Pololu
This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. The shaftless design keeps this motor small: 10 mm in diameter and 3.4 mm in height.
$8.40 AUD, inc GST
$7.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 10-25 $7.41 (exc GST)
  • 25+ $7.25 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

Pololu offer this vibration motor in three different sizes:

All three of these motors have the same vibrational amplitude (0.75g), but the 10×3.4mm version has more mass than the other two, which results in a slightly greater vibrational force.

Specifications

Size 10 mm diameter, 3.4 mm height
Weight 1.2 g
Recommended operating voltage 2.5 – 3.5 V
Vibration amplitude at 3 V 0.75g
Speed at 3 V 14500 RPM (12000 RPM min)
Free-run current at 3 V 60 mA (80 mA max)
Startup current at 3 V 120 mA max
Motor resistance 29 ± 6 O
Operating temperature -10°C to +60°C
Storage temperature -30°C to +70°C

Dimensions (in mm)

People often buy this product together with:

Shaftless Vibration Motor 8x3.4mmShaftless Vibration Motor 8x3.4mm
Shaftless Vibration Motor 10x2.0mmShaftless Vibration Motor 10x2.0mm
Vibration Motor 11.6×4.6×4.8mmVibration Motor 11.6×4.6×4.8mm

Dimensions

Size: 10.0 x 3.4 mm
Weight: 1.2 g

General specifications

No-load speed @ 3V: 14500 rpm1
No-load current @ 3V: 60 mA2
Voltage: 3 V3
Vibration amplitude: 0.75 g

Notes:

1
12000 RPM minimum at 3 V.
2
80 mA maximum at 3 V.
3
Recommended operating range is 2.5 to 3.5 V.
