Vibration Motor 11.6×4.6×4.8mm

Rating:

100% of 100

SKU: POLOLU-2265 Brand: Pololu

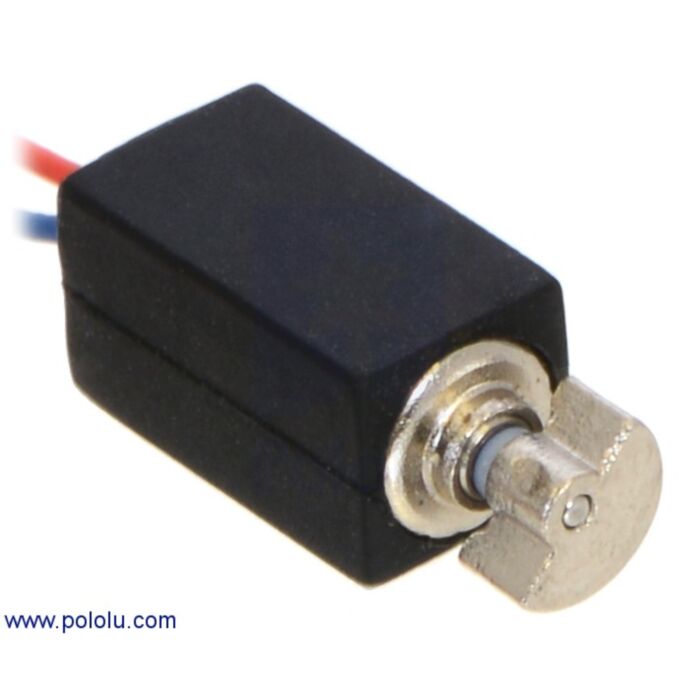

This tiny DC motor has a shaft with an offset mass that vibrates when it rotates. Motors like this are commonly found in cell phones and other devices that use vibration for tactile feedback. The motor has 1.5″ leads and is encased in a removable rubber sleeve that gives it flat surfaces for mounting and prevents it from chattering against whatever it is mounted to. It is intended for operation around 3 V (2.4 V to 3.5 V recommended).

$8.30 AUD, inc GST

$7.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $7.25 (exc GST)
25+ $7.02 (exc GST)

This tiny DC motor produces vibrations by spinning an eccentric shaft at over 10,000 RPM when powered at 3 V. Motors like this are commonly found in cell phones and other devices that use vibration for tactile feedback, and its small size (11.6 × 4.6 × 4.8 mm) and light weight (0.8 g) make it easy to integrate into systems with tight space constraints. The motor has 1.5" leads and is encased in a removable rubber sleeve that gives it flat surfaces for mounting and prevents it from chattering against whatever it is mounted to. It is intended for operation around 3 V (2.4 V to 3.5 V recommended), and polarity is not important (the motor can run CW or CCW). See the datasheet under the resources tab for more information on this motor.

Pololu also carry vibration motors with fully-enclosed shafts:

People often buy this product together with:

Shaftless Vibration Motor 10x3.4mm

Shaftless Vibration Motor 8x3.4mm

Shaftless Vibration Motor 10x2.0mm

Dimensions

Size:	11.6 × 4.6 × 4.8 mm¹
Weight:	0.8 g²

General specifications

No-load speed @ 3V:	12500 rpm
No-load current @ 3V:	65 mA³
Stall current @ 3V:	100 mA
Voltage:	3 V⁴

Notes:

1: Including rubber sleeve and motor shaft with offset mass.
2: With rubber sleeve.
3: 85 mA maximum at 3 V.
4: Recommended operating range is 2.4 to 3.5 V; starting voltage is 2 V.

File downloads

vibration motor datasheet (154k pdf)
