xTool P3 CO2 Laser Cutter - Machine Only
The standalone machine, for those workshops with an air extraction system and a place to put the P3 laser cutter.
Available with a lead time
Expect dispatch between Oct 20 and Oct 21
Quantity Discounts:
- 3+ $10570.95 (exc GST)
- 5+ $10240.61 (exc GST)
This product incorporates a laser system. Before purchasing or using laser equipment (including modules, components, or complete machines such as laser cutters and engravers), please consider the following:
- These products are intended for professional, educational, industrial, or supervised workshop environments.
- Operators should be appropriately trained and understand laser safety practices, including enclosures, signage, PPE, and safe operating procedures where applicable.
A declaration of use will need to be submitted during checkout.

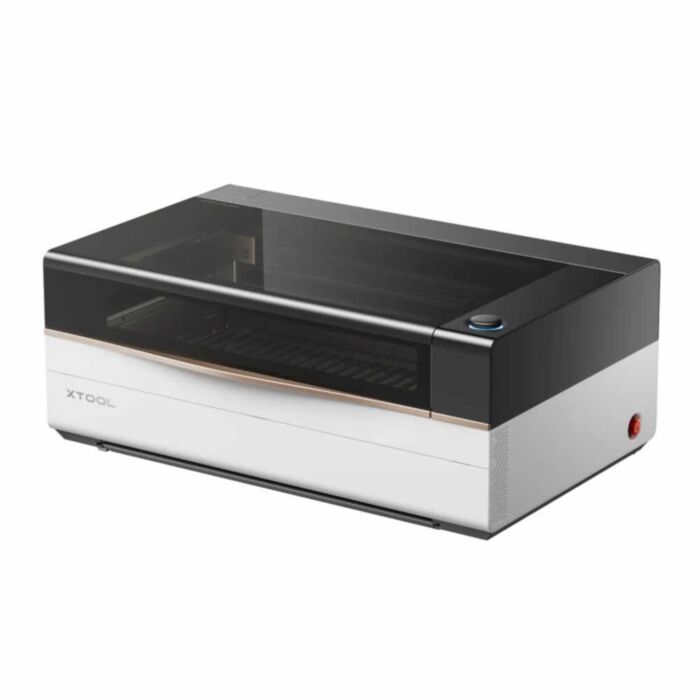

The xTool P3 is an automated 80W CO2 laser cutter designed for precision and speed, effectively bridging the gap between prototyping and production. It is capable of deep cuts across a wide range of materials.
Operation is simplified by automated hardware features, including LiDAR leveling, autofocus, and multiple cameras for automatic job positioning. The accompanying xTool Studio software supports this workflow with built-in guides and tutorials.
Integrated safety features include interlocks that stop cutting when the lid is open, and a fire-sensing system that automatically suppresses accidental flare-ups.
Functionality can be expanded with accessories such as the RA3 Rotary Accessory and Automatic Conveyor, while the AP2 Max Air Purifier and Workstand address fume extraction and machine placement.
Video shows accessories not included with machine
While the machine is capable on its own, we recommend the All-in-One Bundle to get the most value.
Tech Specs and Features
| Bundle | All-in-one: xTool P3 80W CO2 laser plus RA3 rotary, Intelligent Conveyor Feeder, Mobile Work Stand, SafetyPro AP2 Max. |
| Laser | 80 W CO2 |
| Working area | 914 x 457 mm (36 x 18 in) |
| Max speed | Up to 1200 mm/s |
| Vision | dual-camera positioning system including 16 MP SkyView panoramic camera |
| Automation | AutoLift motorised Z, LiDAR ranging, autofocus, smart nesting and batch features in xTool Studio |
| Cooling | Integrated inverter water chiller |
| Safety | Class 1 enclosure, built-in CO2 fire suppression, eight flame sensors and a temperature sensor |
| Software | xTool Studio |
| Shipping | Please note that the P3 ships in a crate approximately 150kg |
Common materials
| Material | Process |
| Wood plywood, solid, MDF | Cut and engrave, Basswood up to 20mm cut in a single pass |
| Acrylic cast and extruded | Cut and engrave, up to 25mm in a single pass |
| Leather and textiles | Cut and engrave |
| Paper and card | Cut and engrave |
| Rubber and foam types | Cut and engrave |
| Glass | Surface engrave |
| Coated or anodised metals | Engrave with the optional 5 W IR module |
